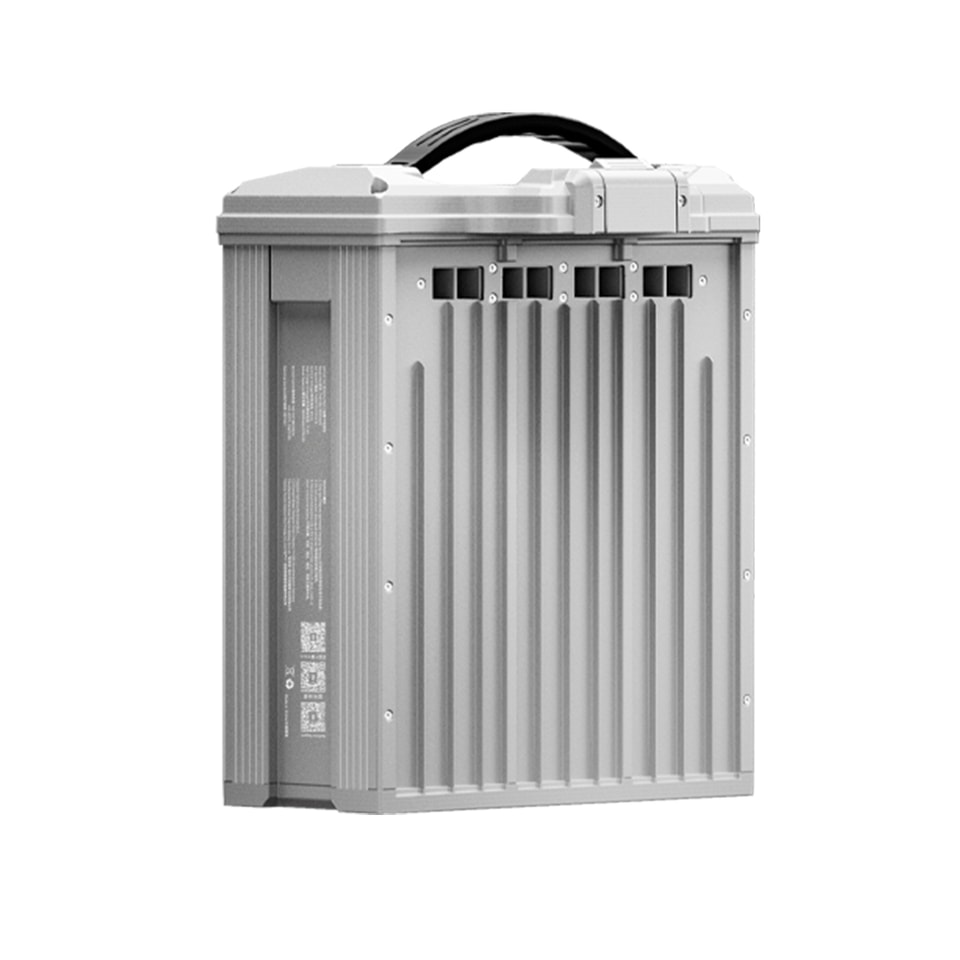

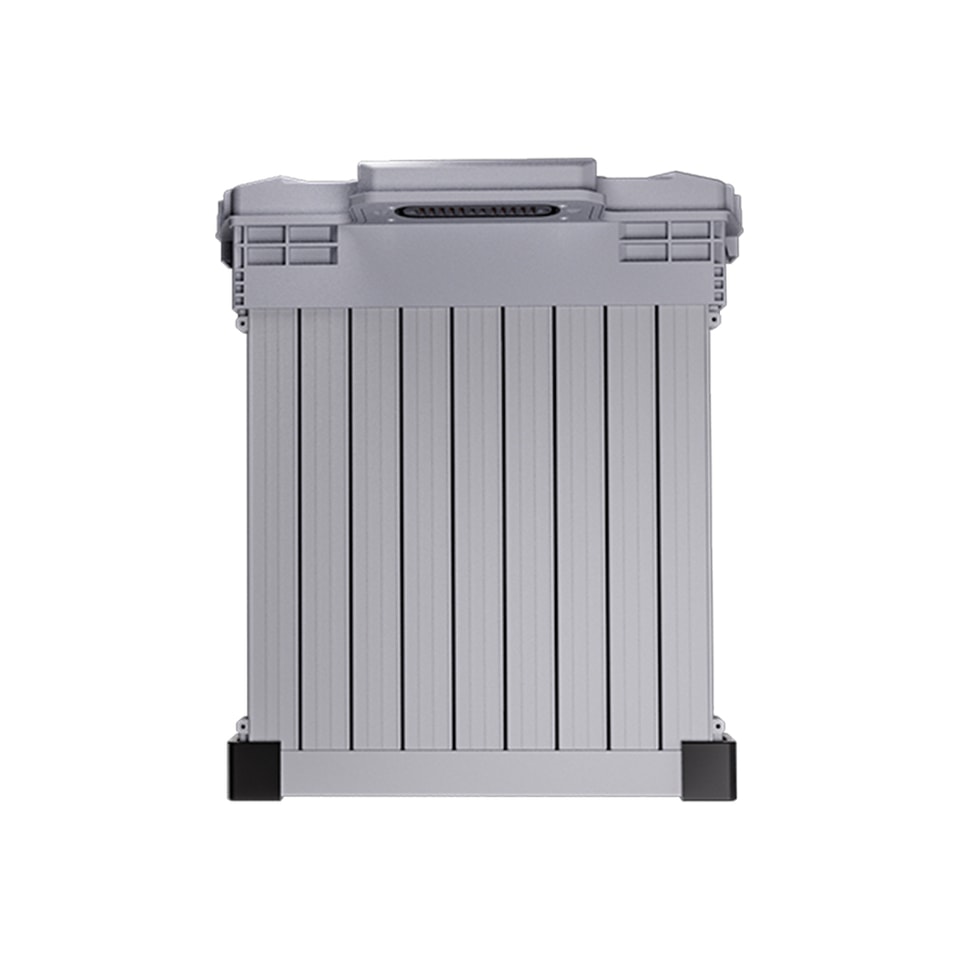

68.4V High-Voltage Version Intelligent Battery for Drone

Email:sales@powerean.com

Tel:+86 18936076151

WhatsApp:+86 18936076151

REQUEST A QUOTE

Specifications

Item	Specification
Nominal Voltage	68.4V
Battery Dimension	Max(LWH): 371274127 mm
Cell Configuration	18S1P
Battery Weight	16500 g
Nominal Capacity	35000mAh
Max Continuous Discharge Current	270A
Energy	2394 Wh
Instant Peak Discharge Current	350A (≤3S)
Discharge Connector	ACES 59615-0149D001
Communication Protocol	DroneCAN
