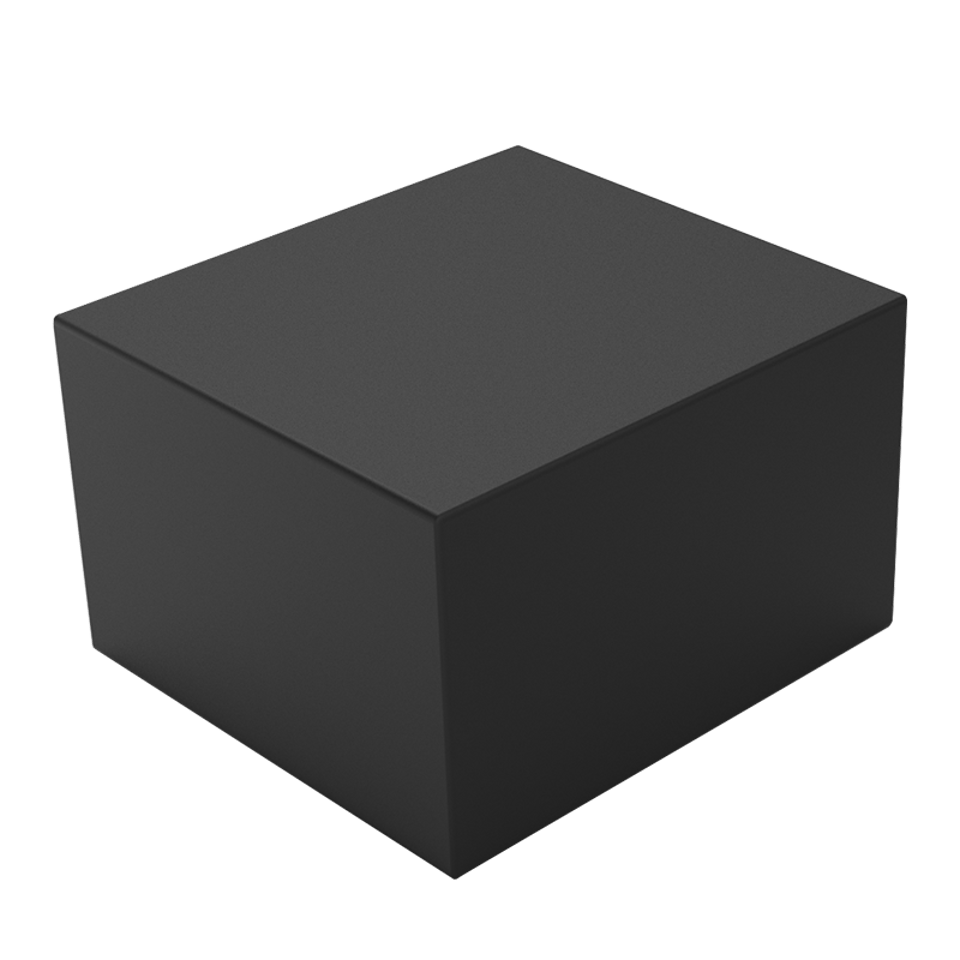

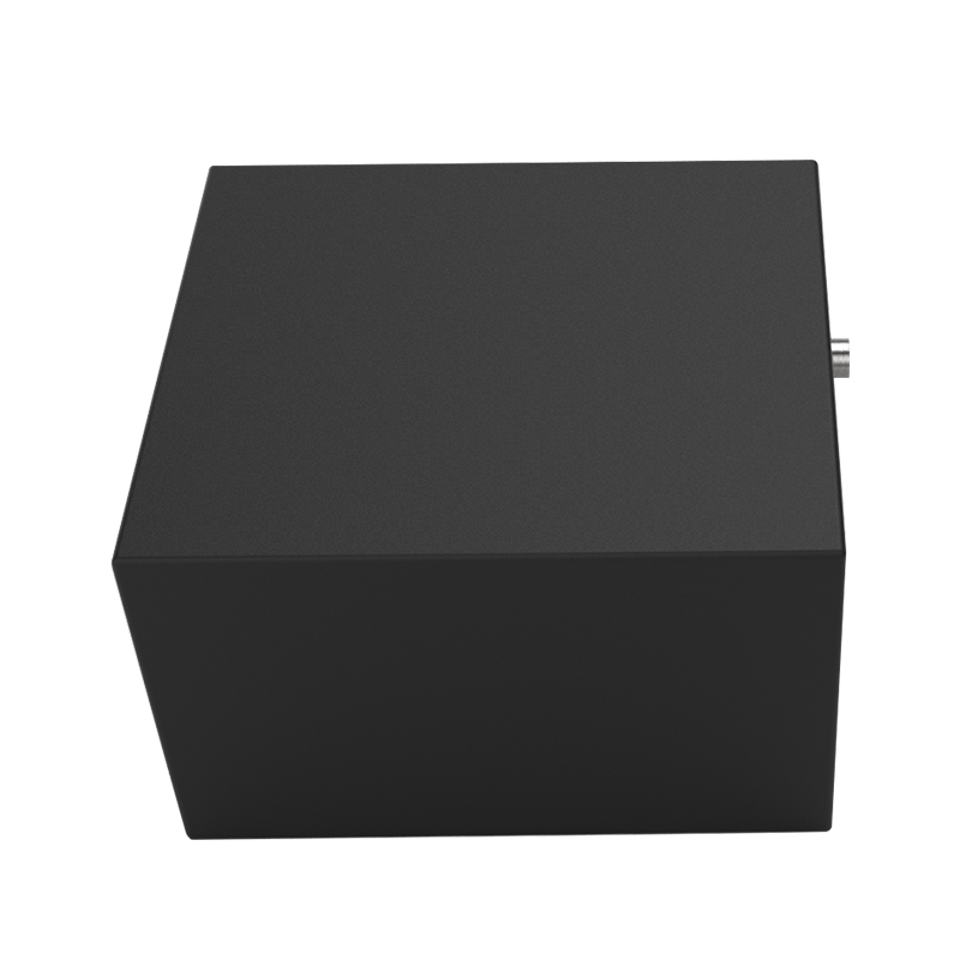

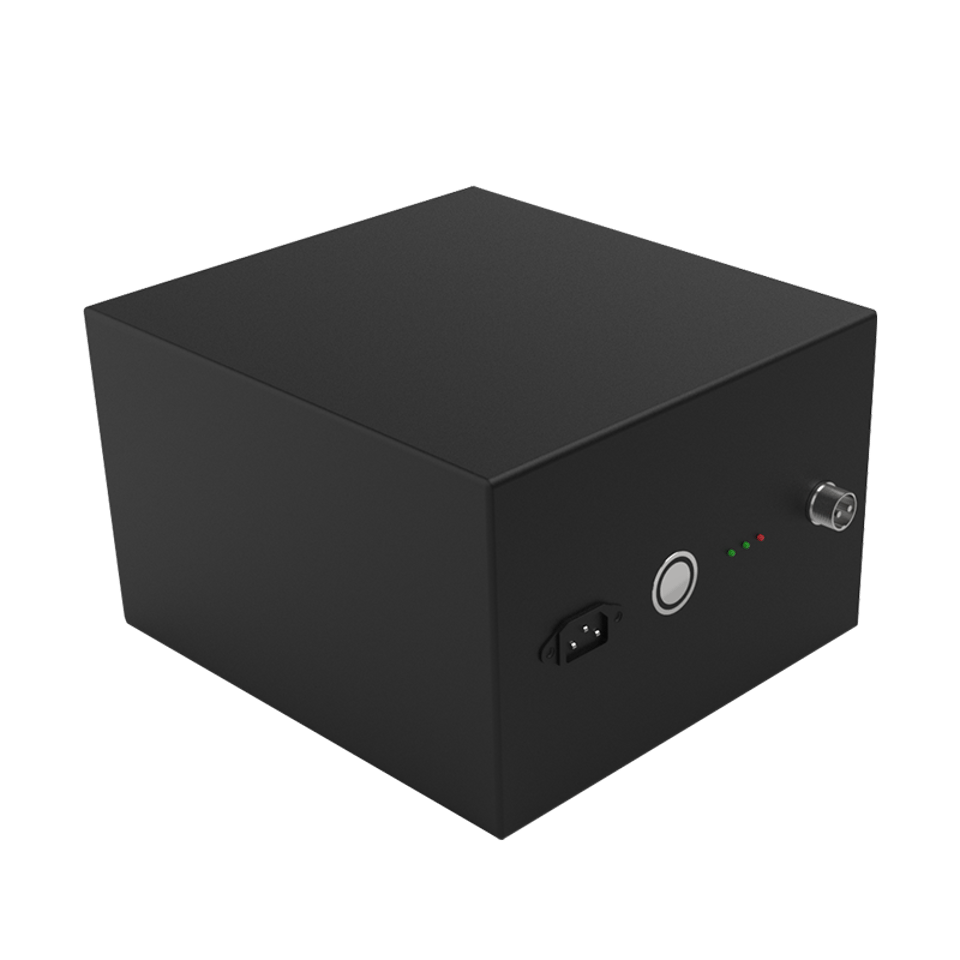

AGV Automated Guided Vehicle

Specifications

Item	Specification
Application	AGV Automated Guided Vehicle
Cell Model	26700 / 3.2V / 4Ah
Battery Configuration	26700‑16S6P / 48V / 20Ah
Nominal Voltage	48V
Nominal Capacity	24Ah
Charging Voltage	58.4V
Charging Current	≤10A
Continuous Discharge Current	20A
Peak Discharge Current	50A
Discharge Cut‑off Voltage	40V
Finished‑product Internal Resistance	≤200mΩ
Battery Weight	15kg
Product Dimension	300×237×165mm (Max)
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-20 ~ 60℃
Temperature Protection Point	65℃±5℃
Battery Housing	Powder‑coated cold‑rolled steel sheet
BMS Protection	Short‑circuit protection, over‑charge protection, over‑discharge protection, over‑current protection, temperature protection, RS485 communication, etc.
Application Fields	Wide range of applications, industrial machinery & equipment, AGV automated guided vehicles, etc.
