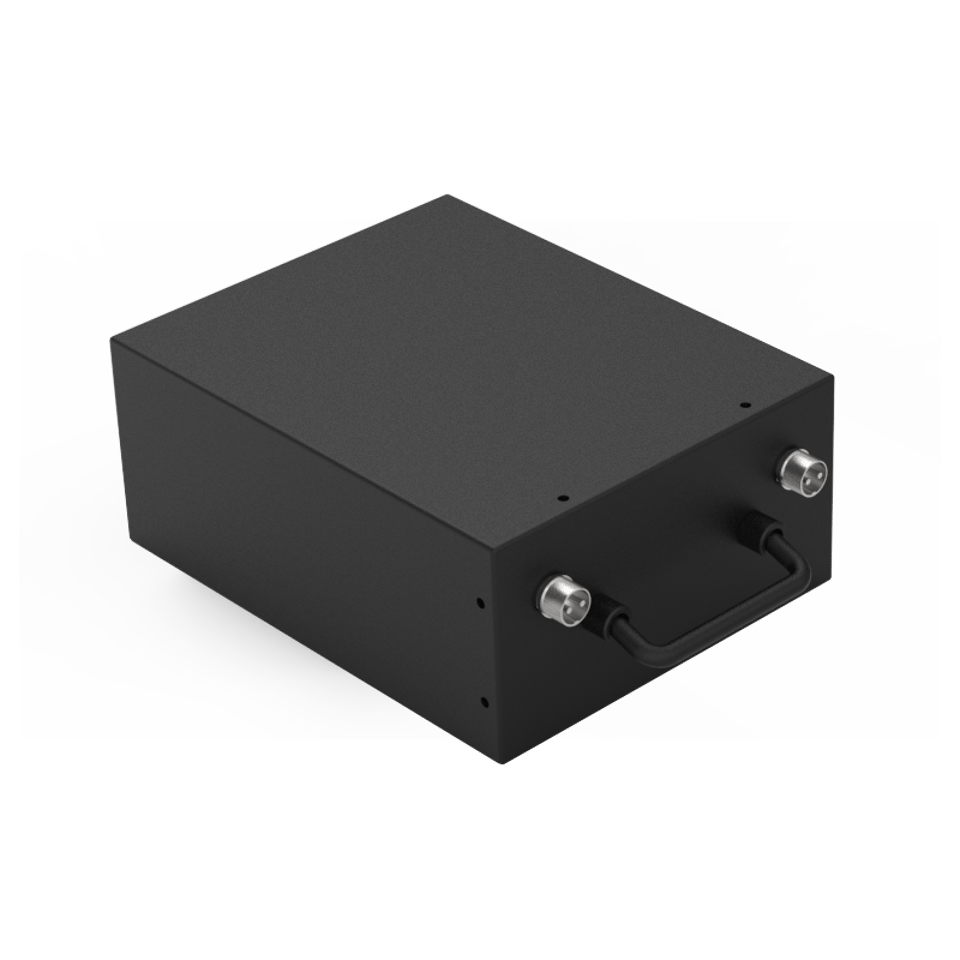

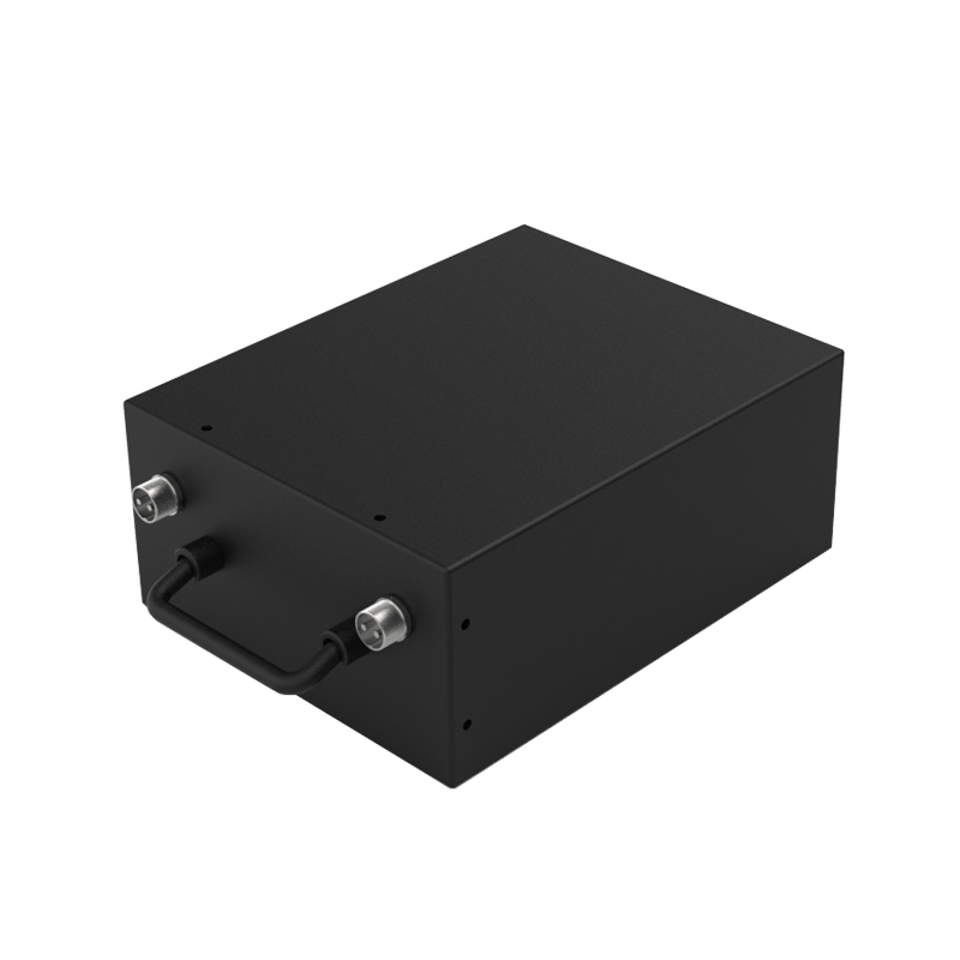

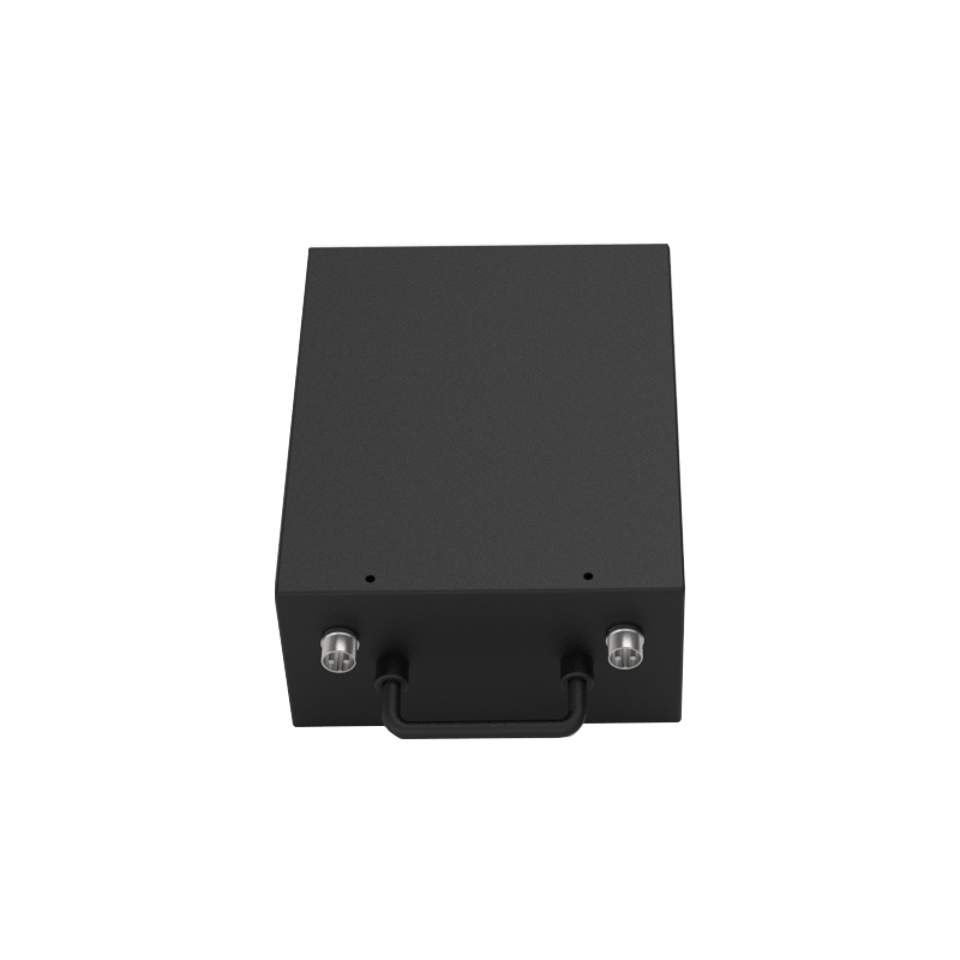

AGV Backup Power Supply

Specifications

Item	Specification
Product	AGV Backup Power Supply
Cell Model	18650 / 3.6V / 2.5Ah
Battery Configuration	18650‑6S6P / 21.6V / 15Ah
Nominal Voltage	21.6V
Nominal Capacity	15Ah
Charging Voltage	25.2V
Charging Current	≤6.5A
Continuous Discharge Current	10A
Peak Discharge Current	30A
Discharge Cut‑off Voltage	18V
Finished‑product Internal Resistance	≤150mΩ
Battery Weight	1.5kg
Product Dimension	150×95×85mm (Max)
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-20 ~ 45℃
Temperature Protection Point	65℃±5℃
Battery Casing	PVC
Communication Protocol	RS485 Modbus Protocol
BMS Protection	Short‑circuit protection, over‑charge protection, over‑discharge protection, over‑current protection, temperature protection, cell balancing, reverse‑connection protection, etc.
Application Fields	Data acquisition equipment
