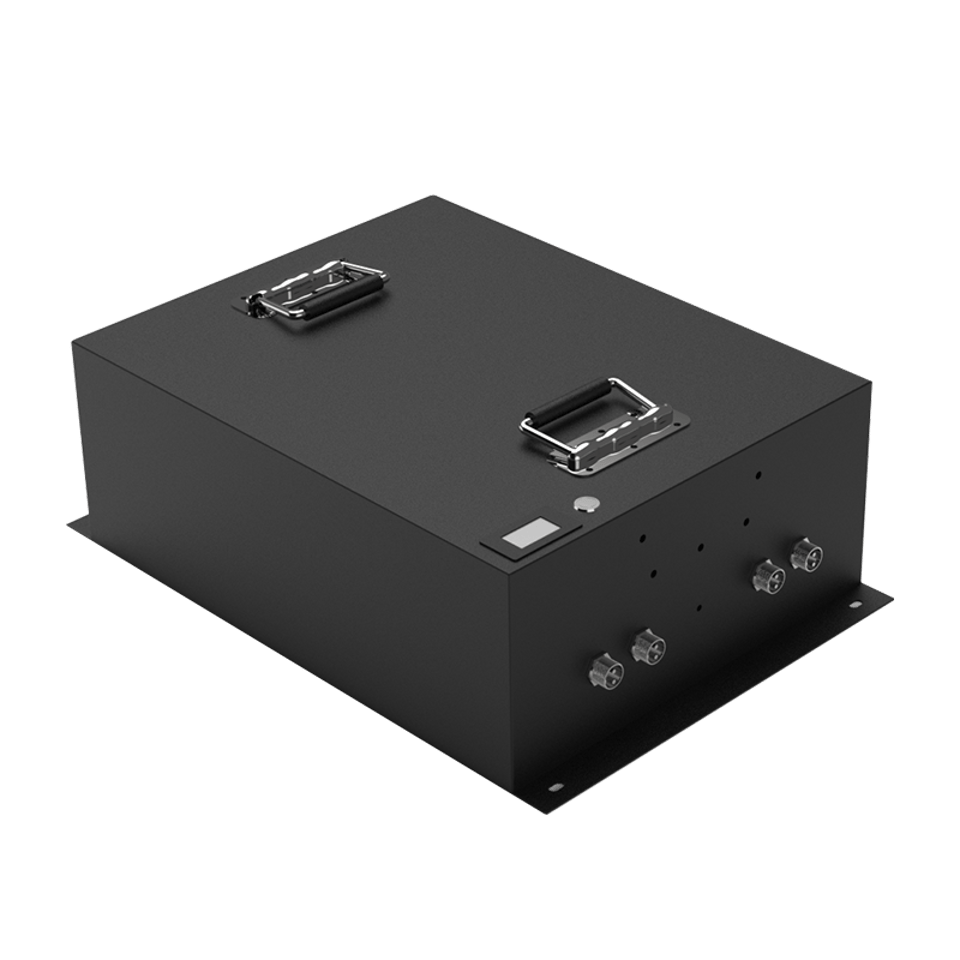

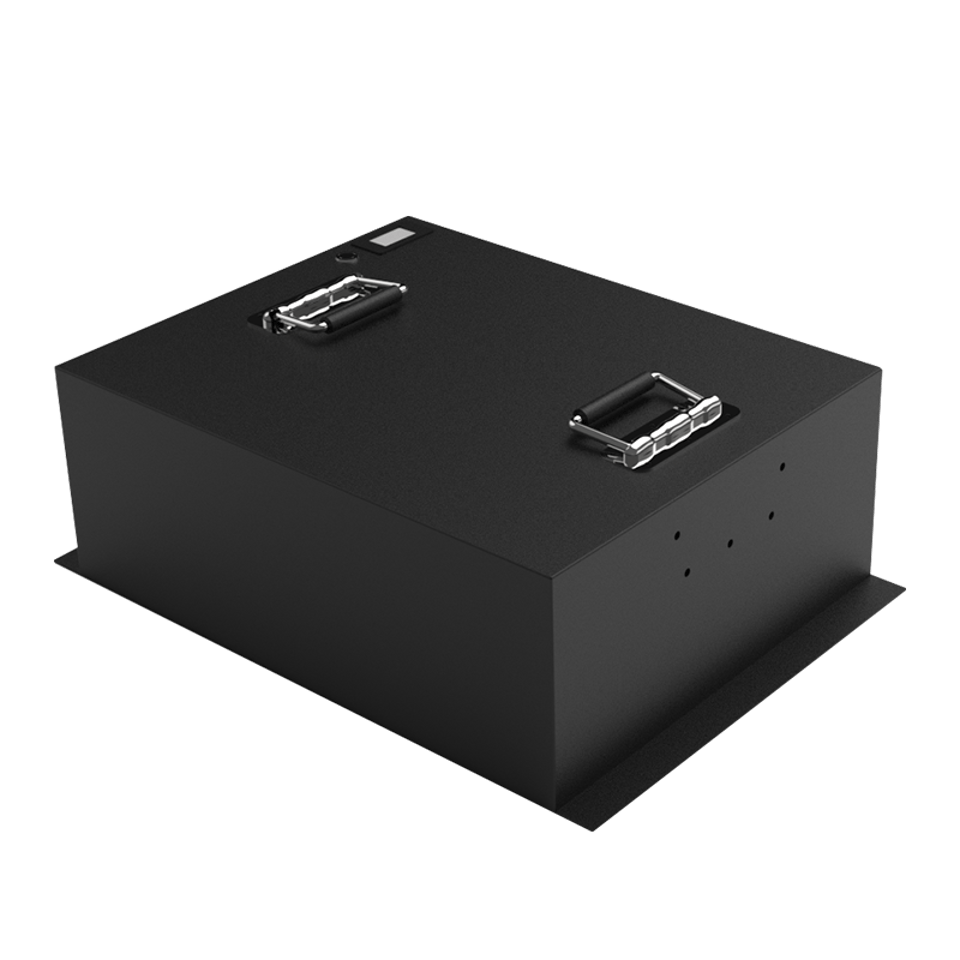

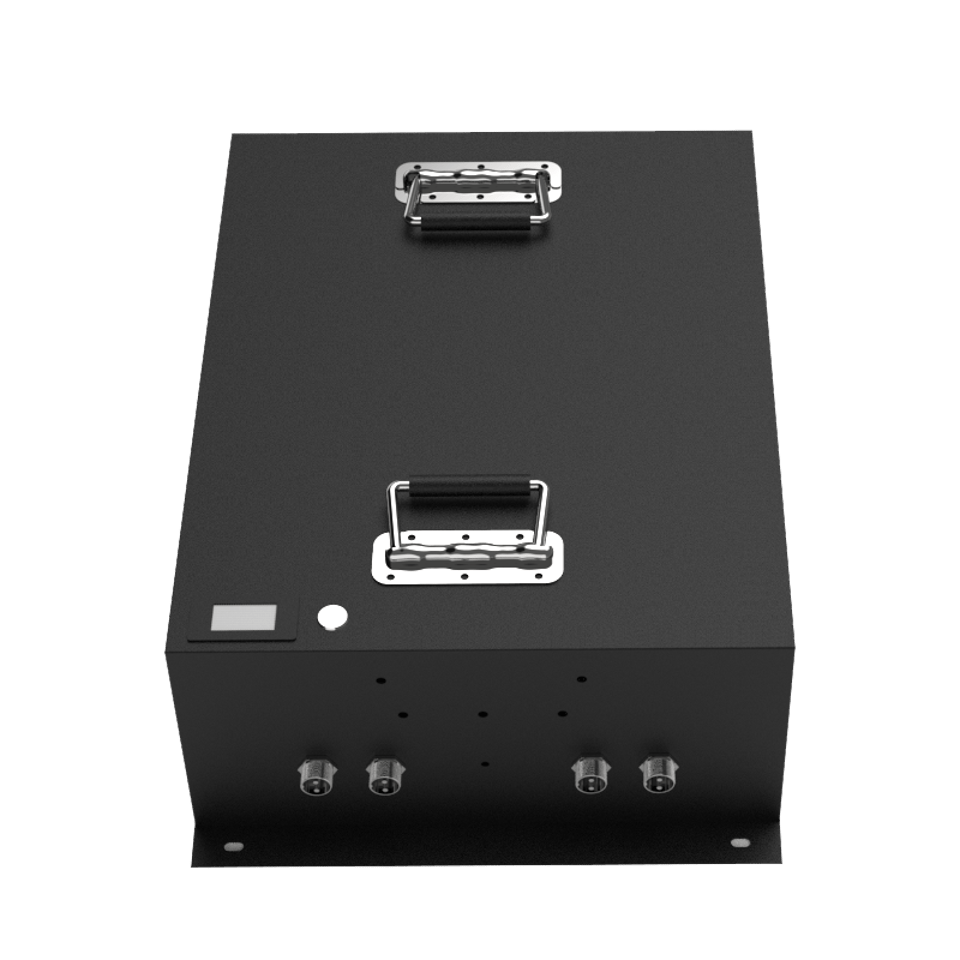

AGV Photovoltaic Cleaning Robot

Specifications

Item	Specification
Application	AGV Photovoltaic Cleaning Robot
Cell Model	LFP100‑3.2V
Battery Configuration	LFP100‑16S1P‑100Ah‑48V
Product Dimension	470×430×277mm (Max)
Nominal Voltage	51.2V
Nominal Capacity	100Ah
Finished‑product Internal Resistance	≤150mΩ
Charging Voltage	58.4V
Charging Current	≤47A
Continuous Discharge Current	≤100A
Discharge Cut‑off Voltage	40V
Battery Weight	50kg
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60℃
Storage Temperature	-20 ~ 35℃
Battery Housing	Aluminum alloy housing
BMS Protection	Short‑circuit protection, over‑charge protection, over‑discharge protection, over‑temperature protection, over‑current protection, ESD protection, etc.
Application Fields	Energy storage, Fire‑fighting equipment, Robots, Logistics vehicles, etc.
