Industrial Robotics Applications

Specifications

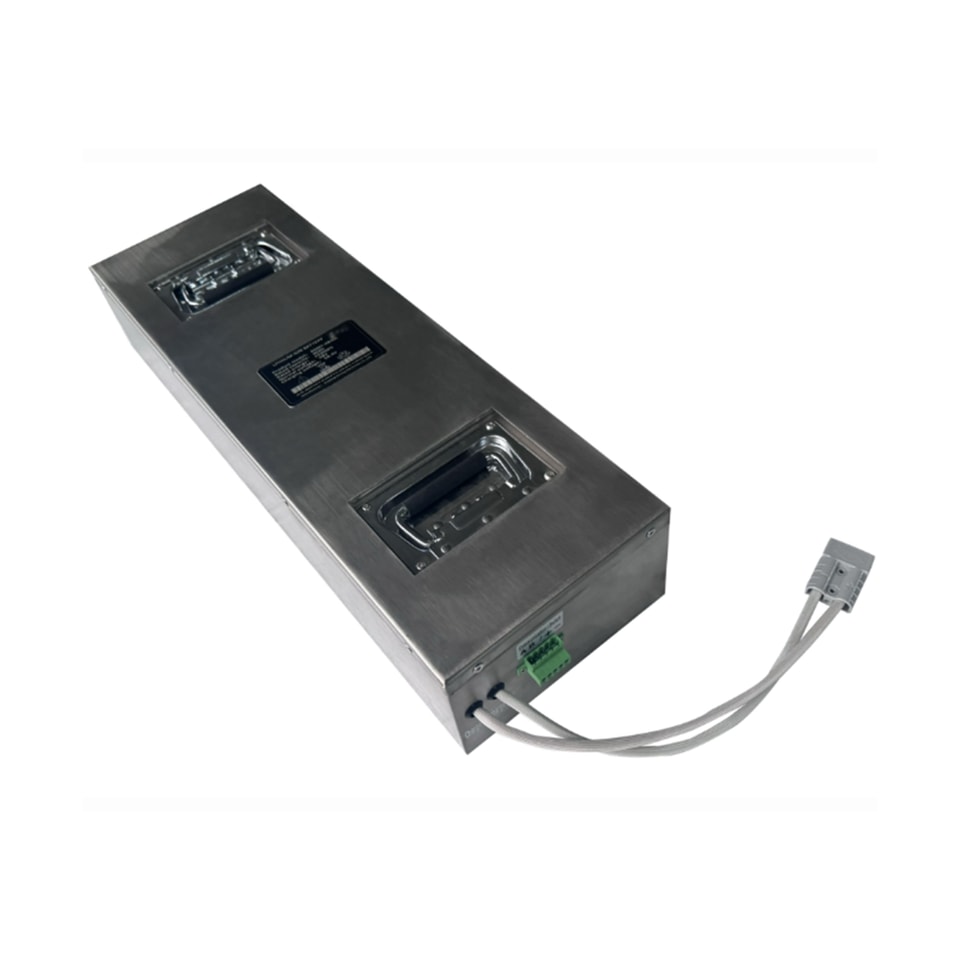

RGV / AGV Battery Selection Table

Voltage (V)	Capacity (Ah)	Weight (kg)	Matched Power (kW)	Dimensions (mm)	Communication	Certification	Remarks
24	40	9	1	330×230×90	RS485/CAN		Remote monitoring, GPS, heating function, voice alert optional. BMS functional safety report available; can quickly assist with UL/CE certification
24	60	14	1	285×235×158	RS485/CAN
48	30	17.7	1	365×180×148	RS485/CAN	UN38.3
48	40	20.6	2	433×275×115	RS485/CAN	UN38.3
48	40	21.6	2	440×230×135	RS485/CAN	UN38.3
48	50	26.1	2	165×235×380	RS485/CAN	UN38.3
48	50	27	2	480×240×110	RS485/CAN
48	75	24	4	480×163×282	RS485/CAN
48	100	42	5	514×375×255	RS485/CAN
48	200	92.8	10	650×430×190	RS485/CAN	UN38.3
48	230	91	11	680×320×230	RS485/CAN	UN38.3
