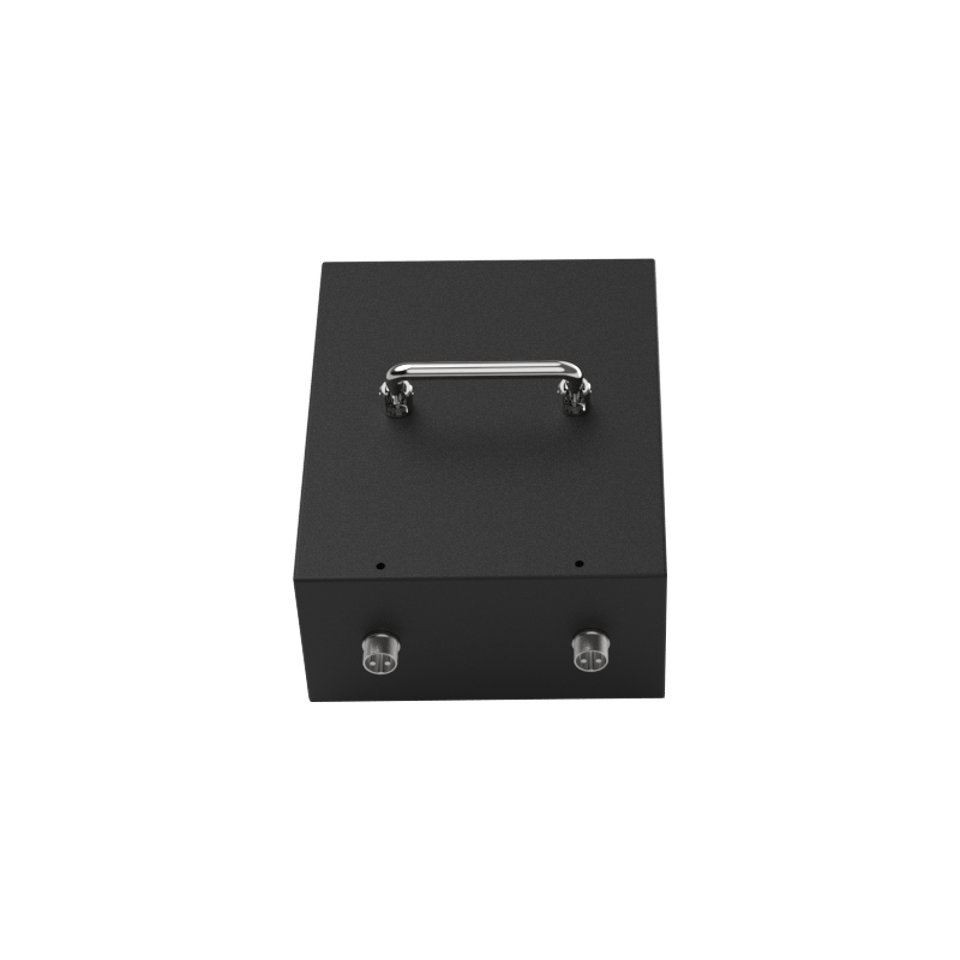

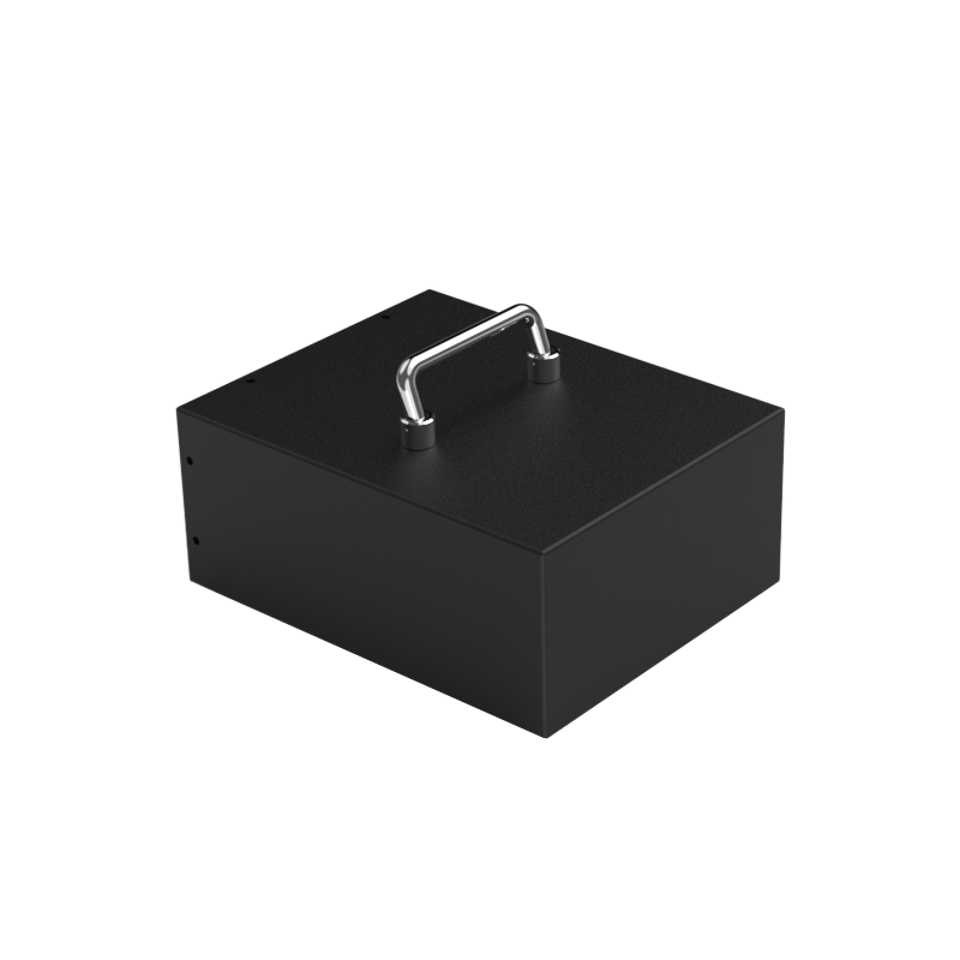

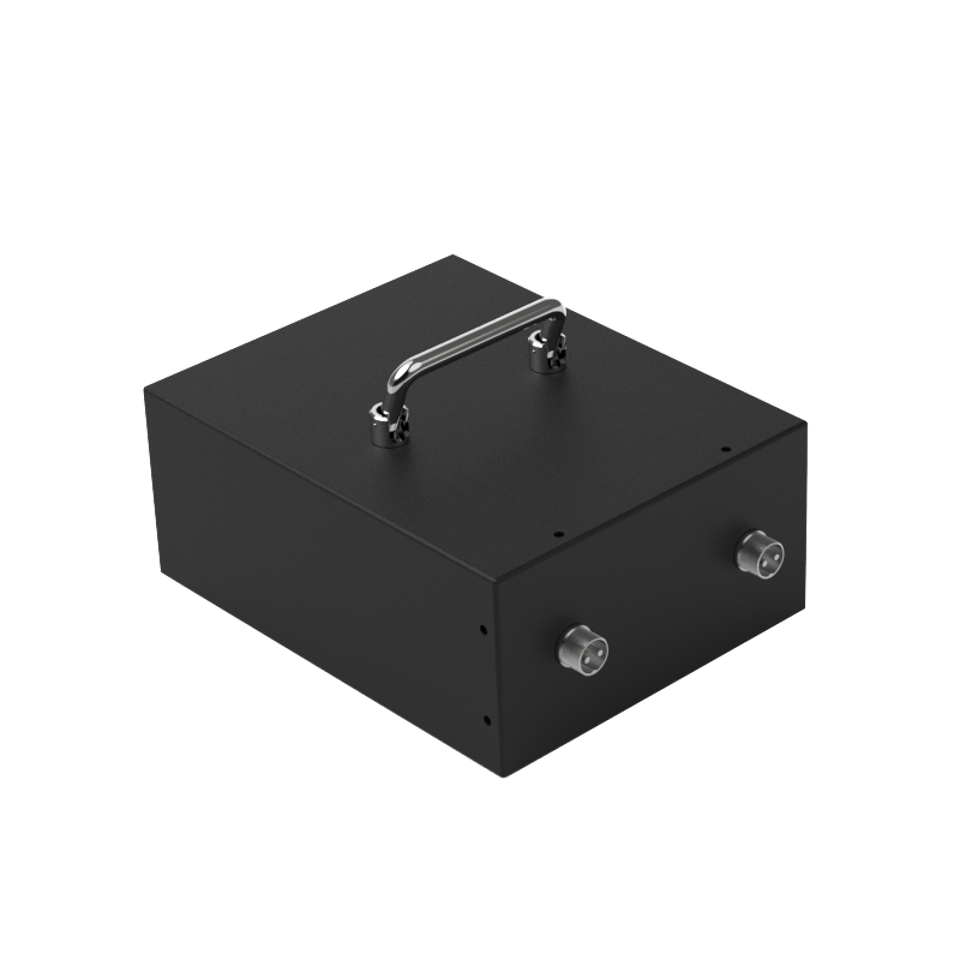

AGV Medical Equipment Battery
Specifications
| Item | Specification |
|---|---|
| Product | AGV Medical Equipment Battery |
| Battery Configuration | 18650‑6S10P / 2500mAh / 21.6V |
| Nominal Voltage | 21.6V |
| Nominal Capacity | 2600mAh |
| Charging Voltage | 25.2V |
| Charging Current | 5A |
| Continuous Discharge Current | 10A |
| Peak Discharge Current | 20A |
| Discharge Cut‑off Voltage | 15.0V |
| Finished‑product Internal Resistance | ≤200mΩ |
| Battery Weight | 3.8kg |
| Product Dimension | 200×130×75mm |
| Charging Temperature | 0 ~ 45℃ |
| Discharging Temperature | -40 ~ +55℃ |
| Storage Temperature | -20 ~ +45℃ |
| Battery Casing | PVC |
| BMS Protection | Standard protection functions plus SMBus communication function |
