Battery for Industrial and Specialized Equipment

Specifications

Product Specification Sheet

Parameter	Specification
Cell Model	26700 / 3.2V / 4Ah
Battery Configuration	26700-4S4P / 12V / 16Ah
Nominal Voltage	12 V (regulated)
Nominal Capacity	16 Ah
Charge Voltage	220 V (AC input)
Charge Current	≤ 1 A
Discharge Current	5 A
Instantaneous Discharge Current	6 A
Discharge Cut-off Voltage	12 V (regulated output)
Internal Resistance (Finished)	≤ 100 mΩ
Battery Weight	2.5 kg
Product Dimensions (L×W×H)	200 × 150 × 100 mm (Max)
Charging Temperature	0℃ ~ 45℃
Discharging Temperature	-20℃ ~ 60℃
Storage Temperature	-20℃ ~ 40℃
Temperature Protection	65℃ ± 5℃

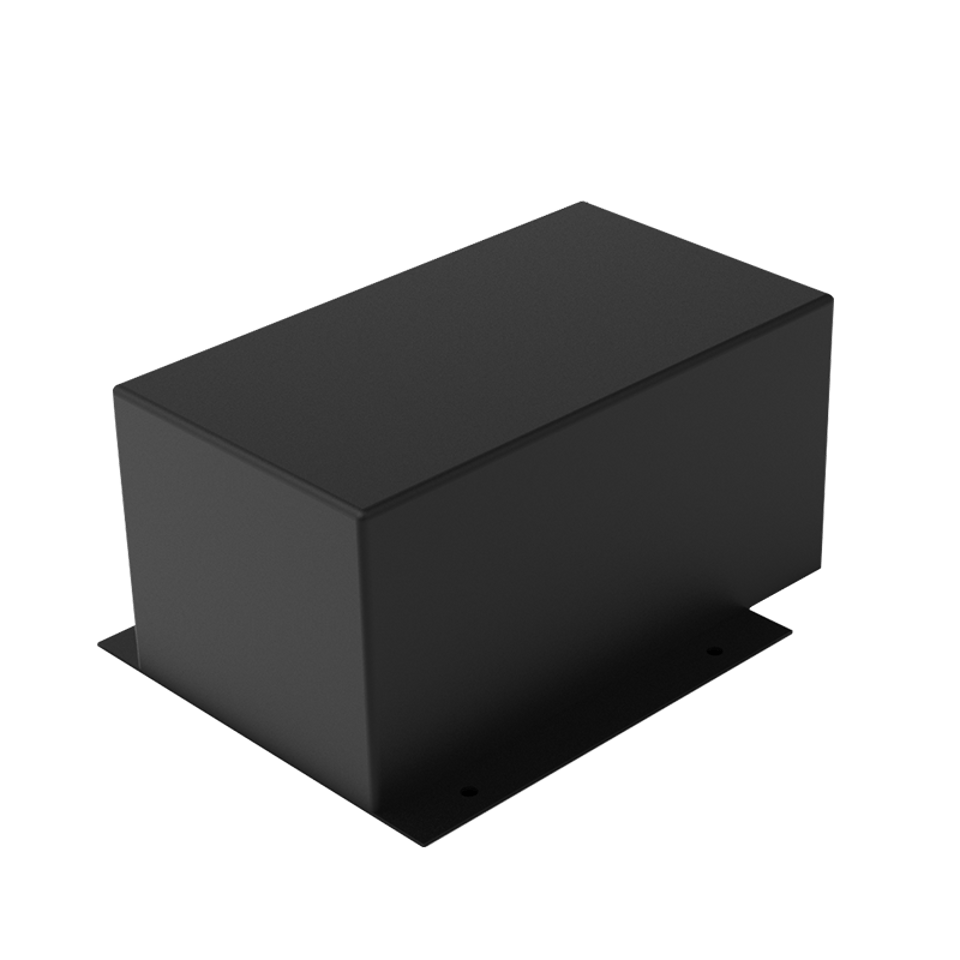

Battery Enclosure	Cold-rolled sheet metal
Protection Features	Short circuit protection, overcharge protection, over-discharge protection, overcurrent protection, temperature protection, cell balancing
Application Fields	Specialized test and measurement equipment, industrial equipment, and more

Product Features:

Shockproof & Water-Resistant Design: Cold-rolled sheet metal housing with internal shock-absorbing structure ensures high safety and reliability in demanding environments
Regulated Voltage Output: Built-in DC-DC converter provides stable 12V regulated output, ensuring reliable power for precision equipment

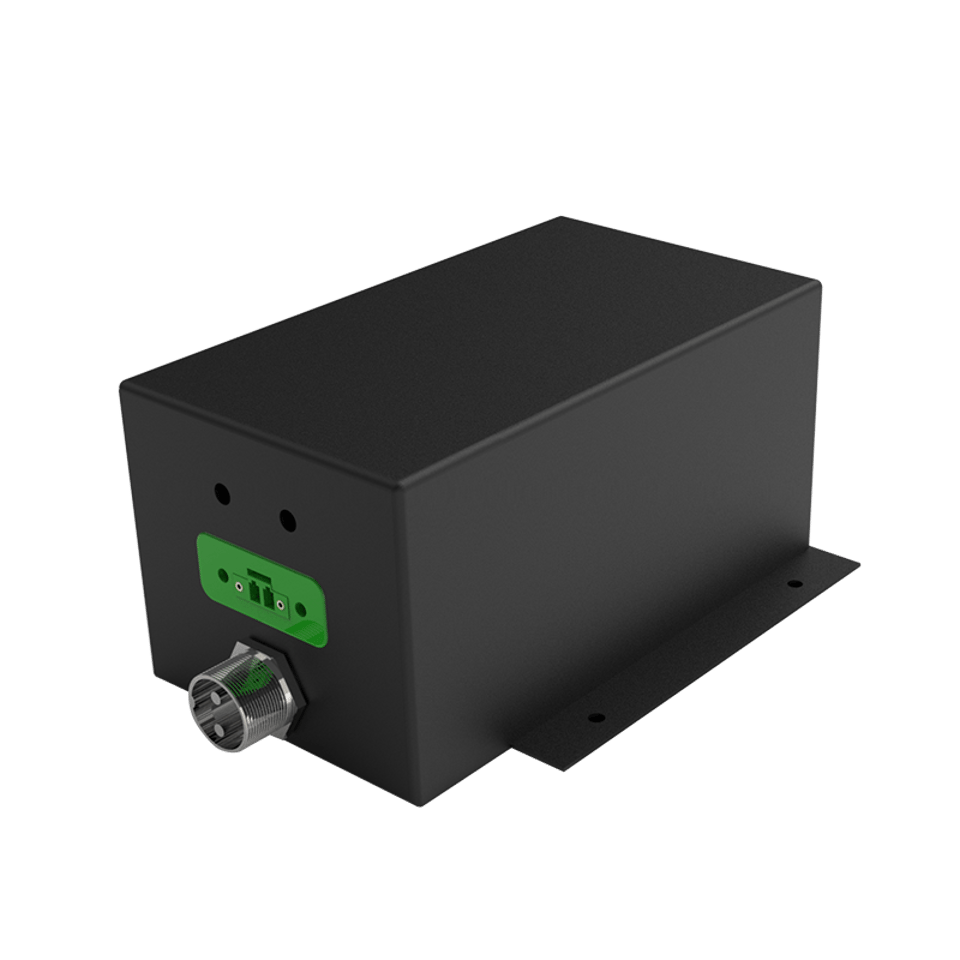

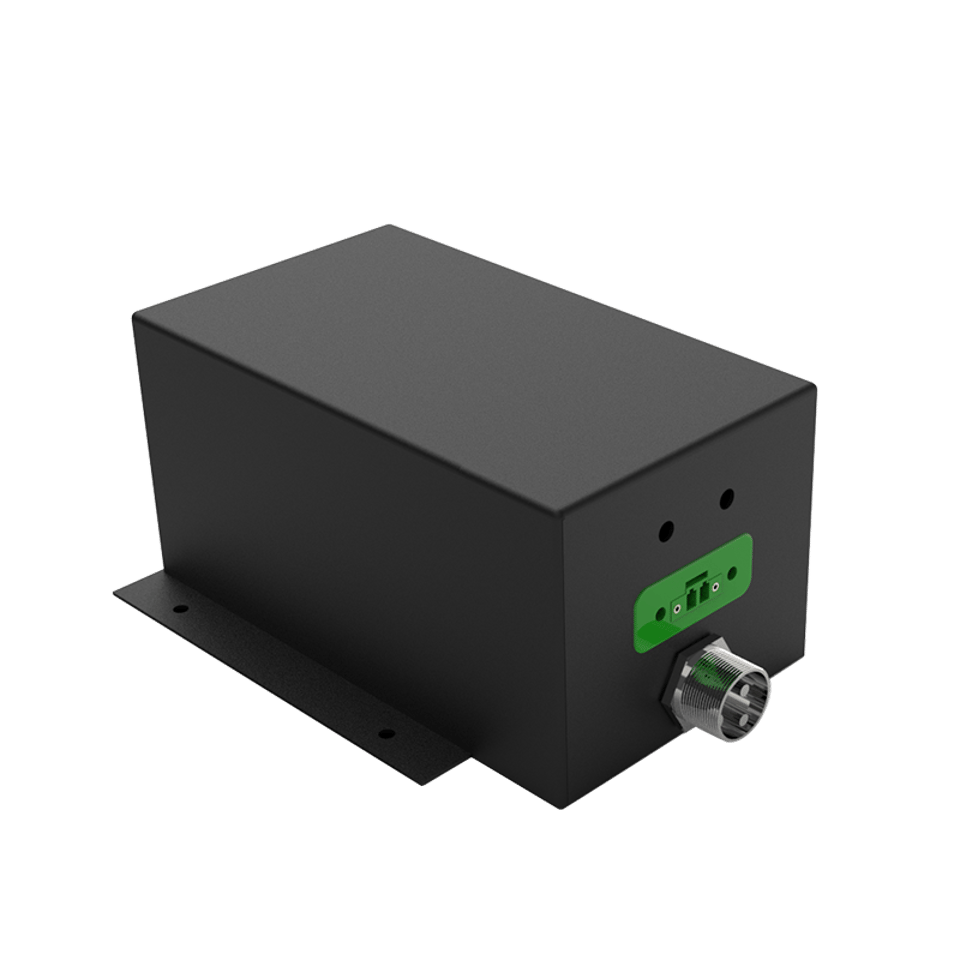

Secure Connections: Quick-connect connectors offer convenient, safe, and reliable electrical connections
AC Charging Capability: Integrated AC-DC module allows direct charging from standard 220V AC mains power supply
Automatic Temperature Protection: Integrated temperature sensor triggers automatic protection when temperature exceeds preset threshold
Long Cycle Life: Extended operational lifespan with excellent safety and discharge performance
Environmentally Friendly: Long cycle life aligns with low-carbon, energy-saving, and sustainable value propositions
