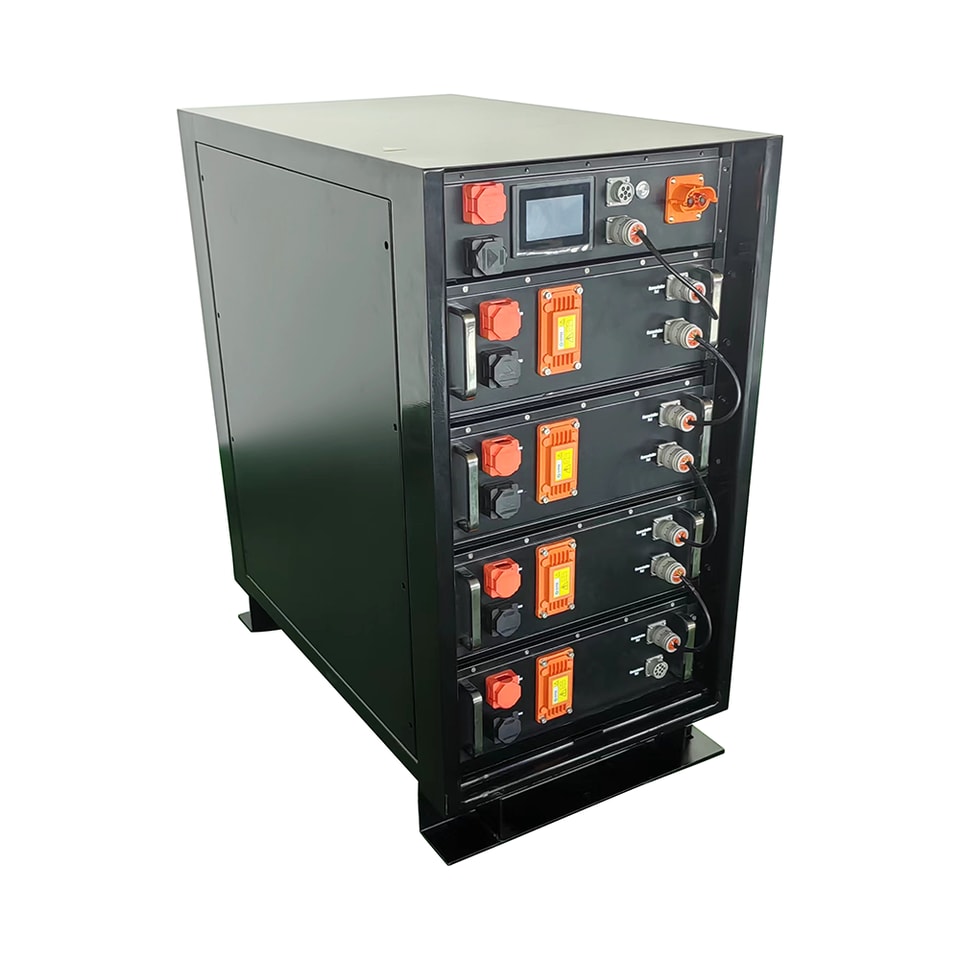

Custom Special High-Voltage Battery

Specifications

Special High-Voltage Battery Selection Table

Voltage (V)	Capacity (Ah)	Weight (kg)	Matched Power (kW)	Dimensions (mm)	Communication	Features
84	50	27	4	700×202×120	RS485/CAN	Remote monitoring, GPS, heating function, voice alert optional. BMS functional safety report available; can quickly assist with UL/CE certification
120	50	92	6	550×550×285	RS485/CAN
76.8	80	95	6	500×480×268	RS485/CAN
345	32	180	11	906×536×360	RS485/CAN
76.8	180	110	14	1080×342×236	RS485/CAN
120	170	200	20	550×550×320	RS485/CAN
76.8	300	200	23	1200×500×270	RS485/CAN
96	243	220	23	1140×202×603	RS485/CAN
144	160	209	23	525×435×554	RS485/CAN
288	100	220	29	1193×886×328	RS485/CAN
384	81	350	31	1000×1000×600	RS485/CAN
640	78	480	50	710×970×1200	RS485/CAN
