NMC Battery Power & Telecom Equipment
Here is a brief description of the product, introducing its main features and uses.
Downloads
Specifications

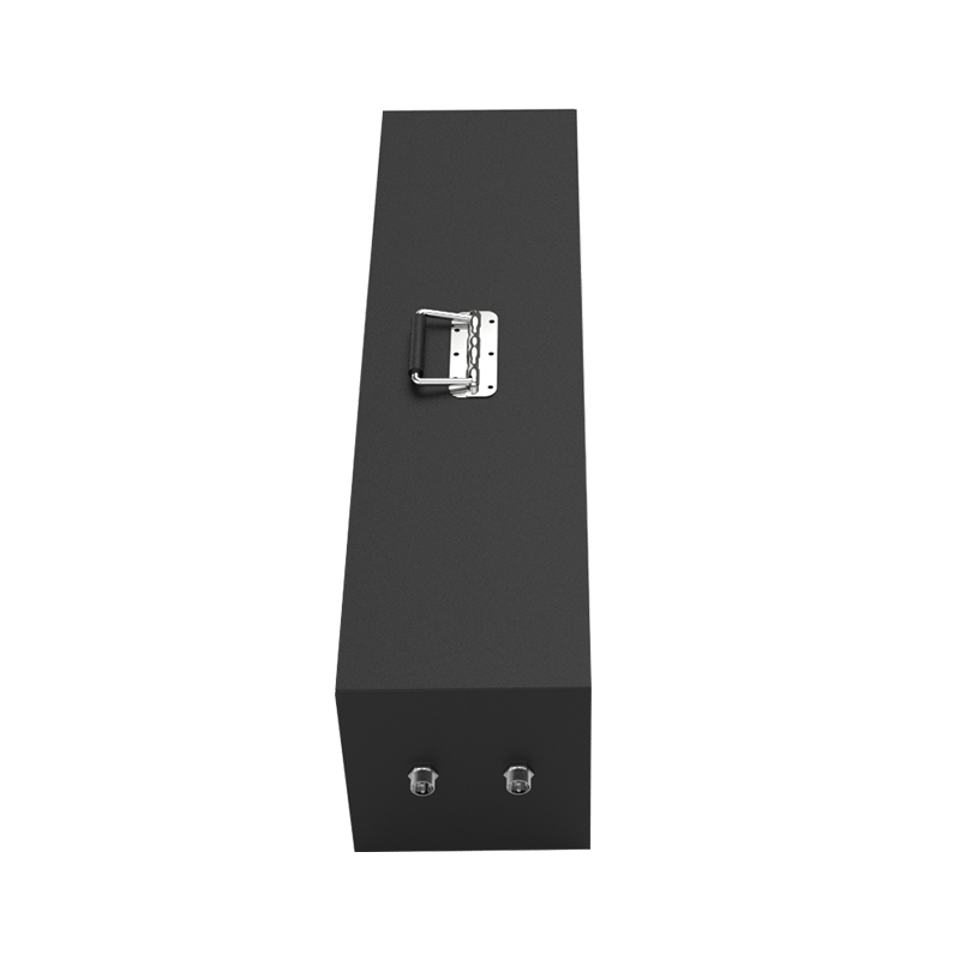

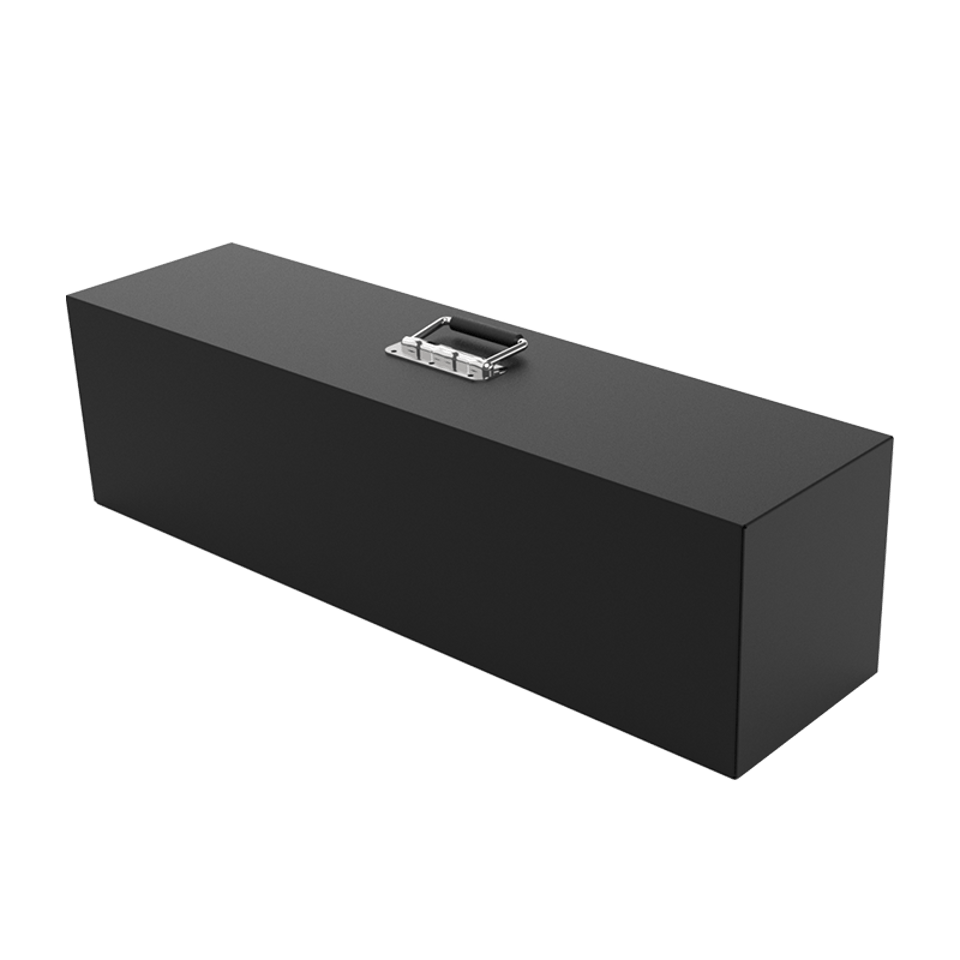

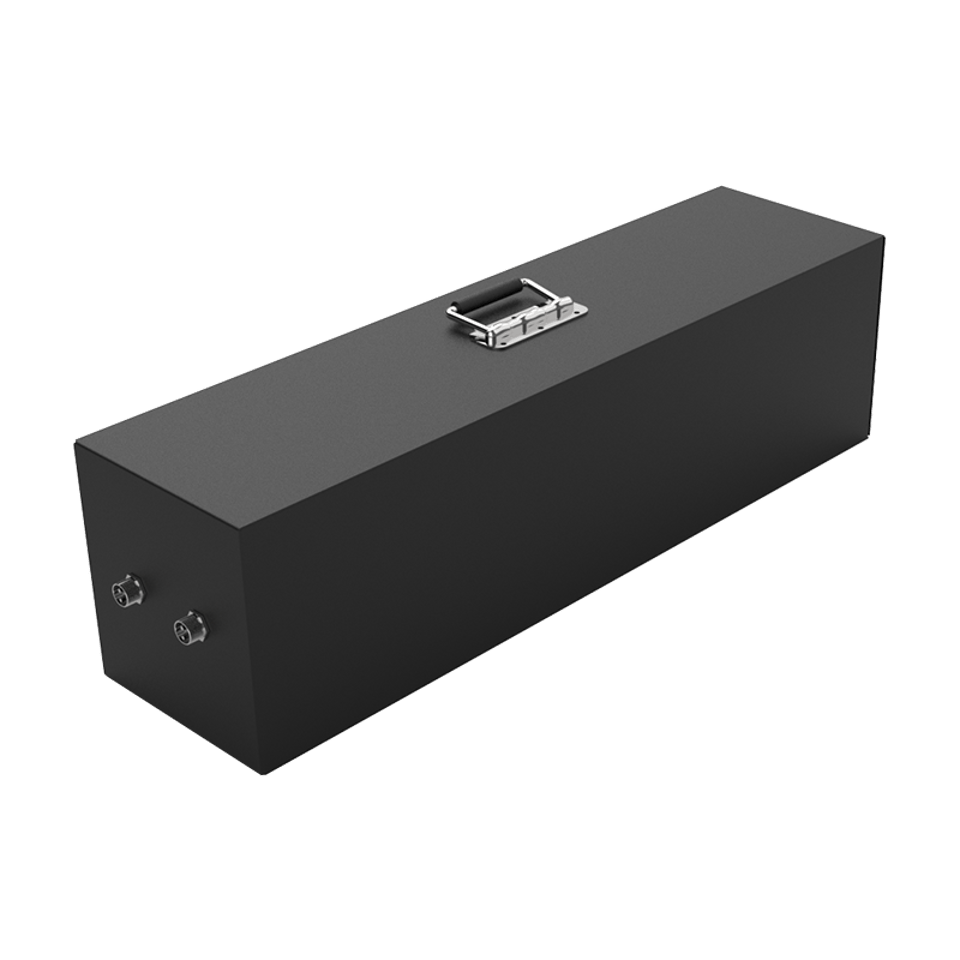

NMC Lithium Battery for Power & Communication Equipment
English Technical Specification Sheet
1. General Specifications
| Item | Specification |
|---|---|
| Cell Model | 18650 / 2500mAh / 3.6V |
| Battery Pack Specification | 25.9V - 10Ah |
| Product Dimensions | 169.5mm * 71mm * 35.6mm |
| Nominal Voltage | 25.9V |
| Nominal Capacity | 10Ah |
| Charging Voltage | 29.4V |
| Charging Current | 3.2A |
| Discharge Current | 8.4A |
| Discharge Cut-off Voltage | 17.5V |
| Internal Resistance | ≤200mΩ |
| Battery Weight | Approx. 900g |
| Charging Temperature | 0 ~ 45℃ |
| Discharging Temperature | -20 ~ 60 ℃ |
| Storage Temperature | -20 ~ +50℃ (< 1 month); -20 ~ 40℃ (< 3 months); -20 ~ +20℃ (< 12 months) |
| Battery Casing | Stainless Steel Shell |
| Application Field | Communication Equipment |
2. Protection Functions
| Protection Type | Description |
|---|---|
| Lithium Battery Protection | Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection, Overtemperature protection, etc. |
3. Product Features
| Feature | Description |
|---|---|
| Stainless Steel Shell | Durable stainless steel enclosure. |
| 485 Communication Protocol | Equipped with RS485 communication protocol. |
| Reliable Output Connection | Adopts national standard (GB) UL wires for output to ensure high conductive reliability. |
| Battery Protection Management | Utilizes well-known brand protection chips, featuring high stability, high-precision monitoring, precise control, and maximizing the elimination of safety hazards. |
| Performance & Longevity | The battery pack is safe, has good discharge performance, and a long cycle life. |
| Environmental Friendly | High cycle life, aligning with the values of low carbon, energy saving, and environmental protection. |
