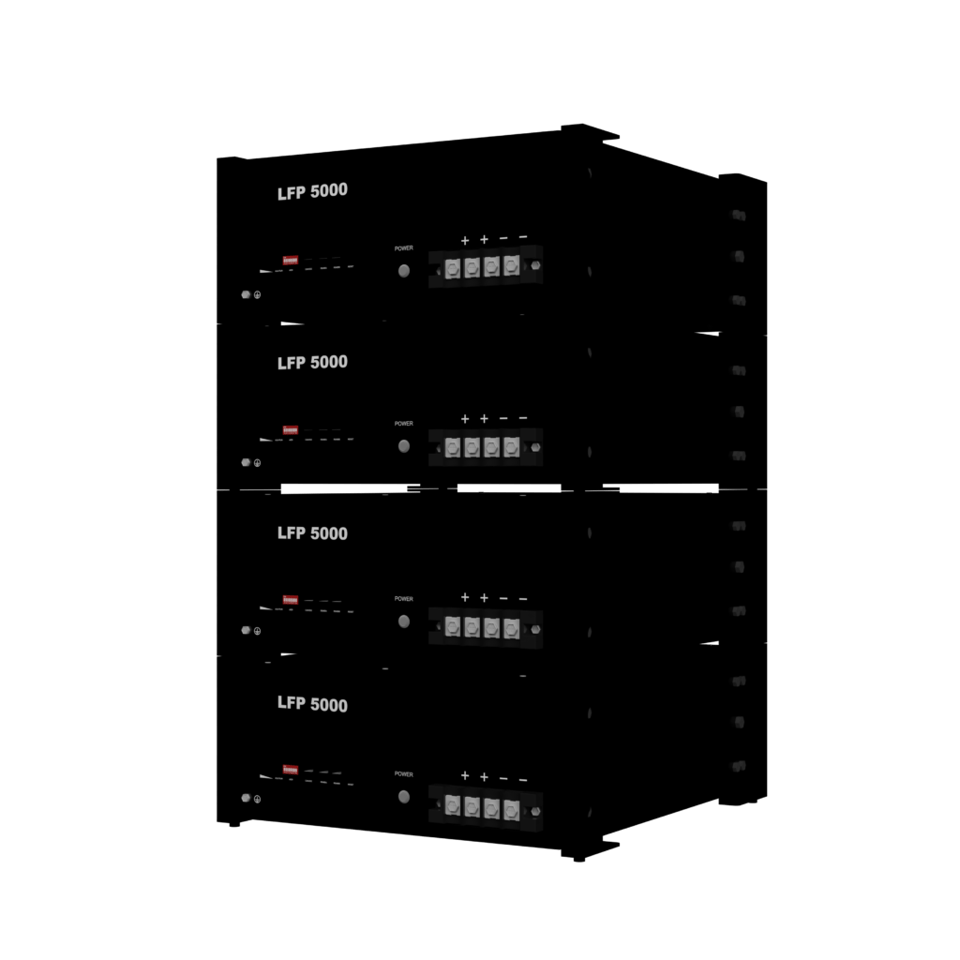

Rack-Mounted LiFePO4 Battery for Solar Energy Storage

Specifications

English Technical Specification Sheet

Item	Specification
Model	LFP 5000
Total Energy*	5.12 kWh
Usable Energy (DC)*	4.6 kWh
Nominal Discharge / Charge Power	2.5 kW
Peak Power (Discharge Only)	2.9 kW (for 3 seconds)
Constant Current (Discharge Only)	50 A
Voltage Range	43.2 - 58.4 V d.c.
Rated Voltage	51.2 V d.c.
Rated Current	50 A
Max Charging Current	50 A
Max Discharging Current	50 A
Max Discharge Voltage	58.4 V d.c.
Weight	49.5 kg
Dimensions (mm)	453 x 433 x 177 mm

Feature	Description
Safe & Reliable	Adopts Lithium Iron Phosphate (LiFePO4) cells, ensuring high safety and reliability.
Complete Product Range	Both high-voltage and low-voltage models are available to meet diverse needs.
Scalable & Smart Management	Battery capacity is expandable and equipped with a Battery Management System (BMS).
