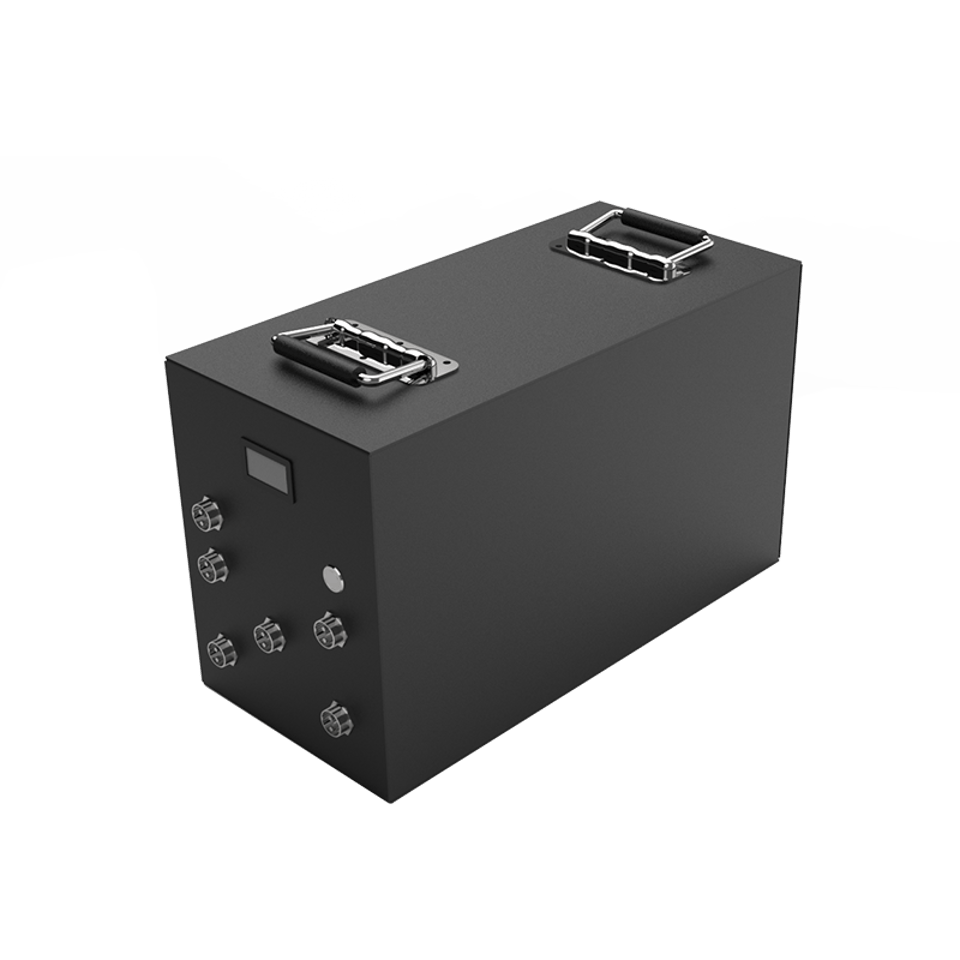

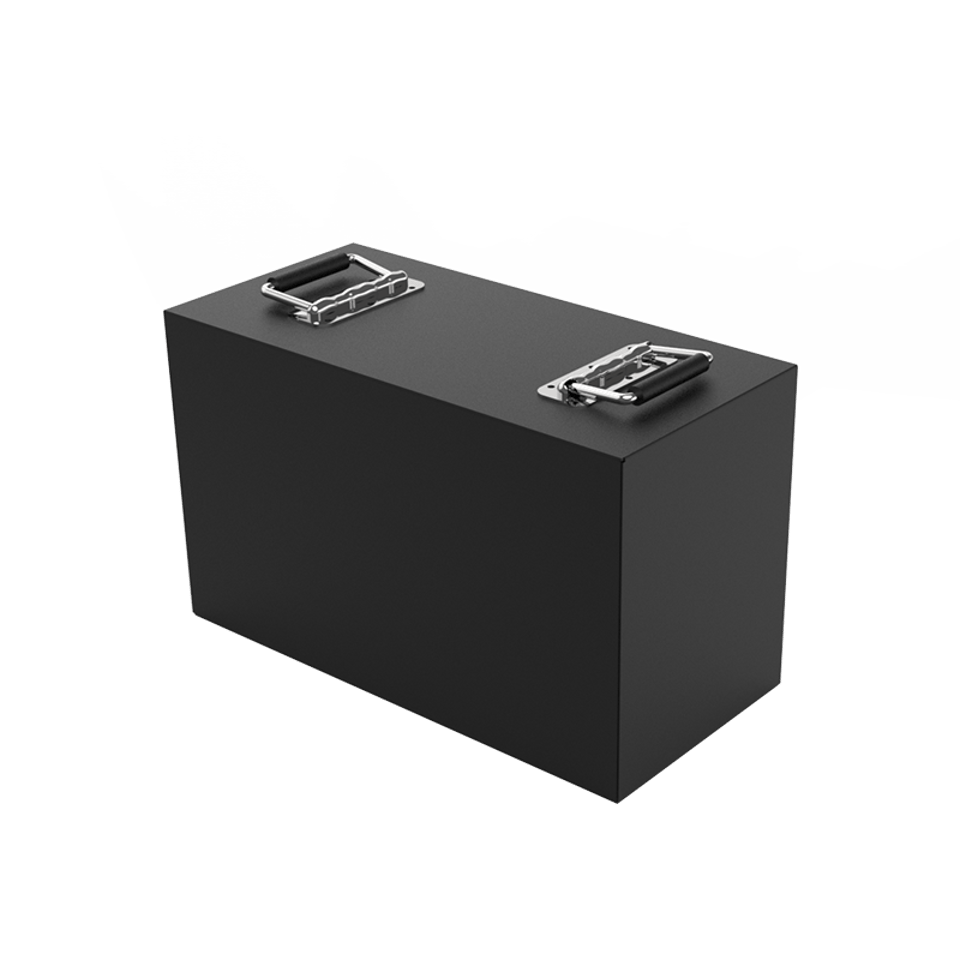

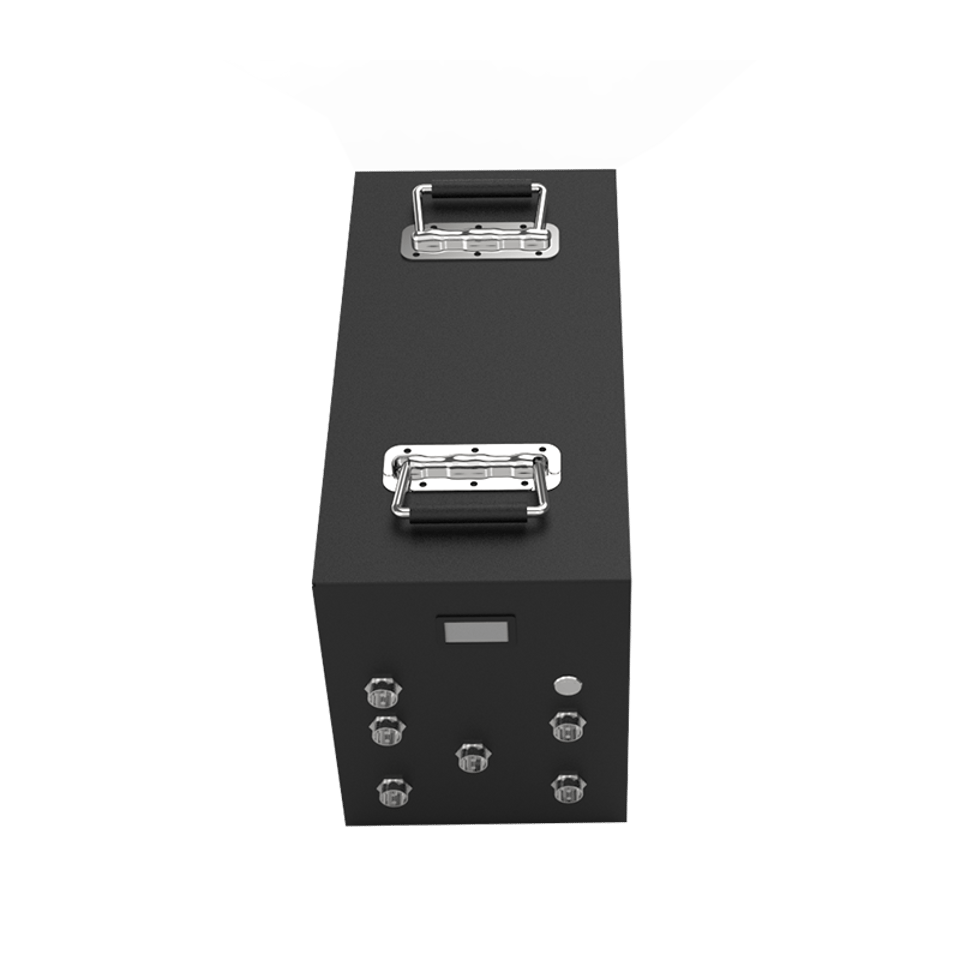

Solar Storage Battery for Power Monitoring & Grid Supervision

Specifications

English Technical Specification Sheet

Item	Specification
Cell Model	LF50 / 50Ah / 3.2V
Battery Pack Specification	LF50-8S1P / 50Ah / 25.6V
Nominal Voltage	25.6V
Nominal Capacity	50.0Ah
Charging Voltage	29.2V
Charging Current	≤30A
Discharge Current	50A
Instantaneous Discharge Current	100A
Discharge Cut-off Voltage	20.0V
Internal Resistance	≤100mΩ
Battery Weight	≤15.0kg
Product Dimensions	170 * 240 * 350 mm
Charging Temperature	0 ~ 55℃
Discharging Temperature	-20 ~ 55℃
Storage Temperature	-20 ~ 45℃
Battery Casing	Sheet Metal Shell
Application Field	Robotics, UPS, Energy Storage

Protection Type	Description
Smart BMS	Power Management (Supports RS485, CAN protocols), Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection, Overtemperature protection, etc.
