Specifications

English Technical Specification Sheet

Item	Specification
Cell Model	32700-6Ah-3.2V

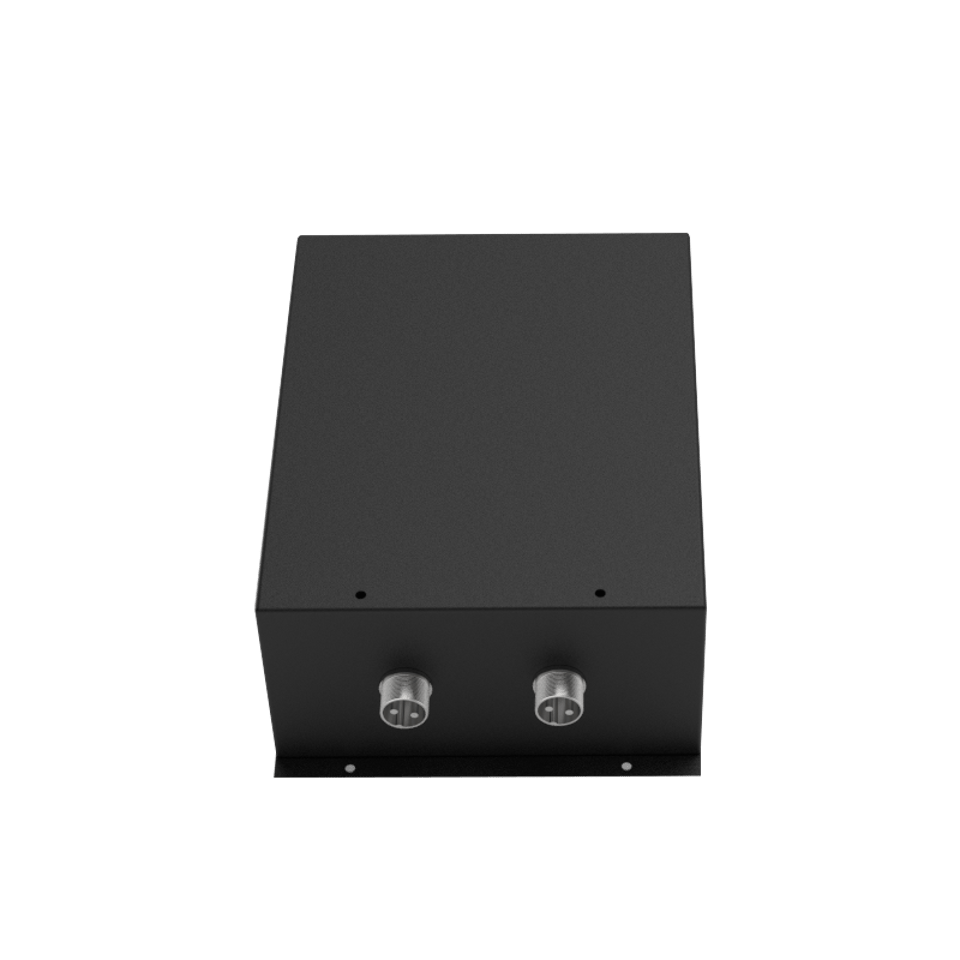

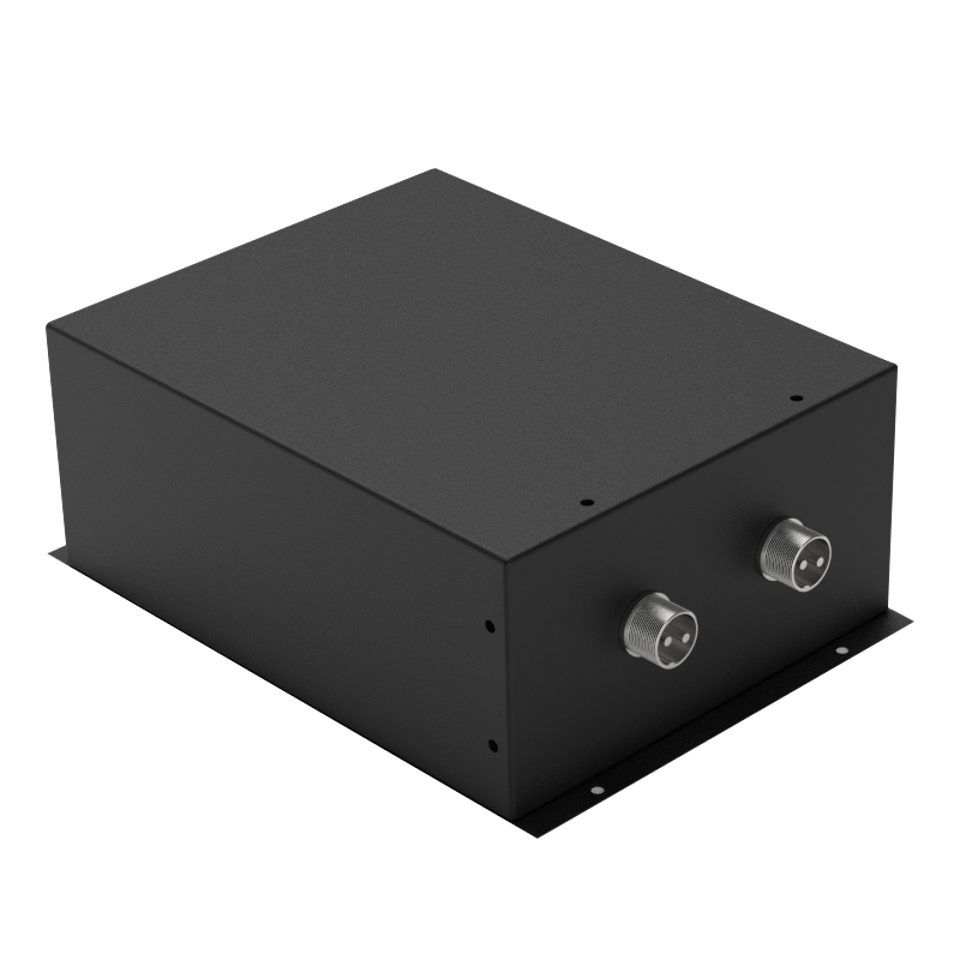

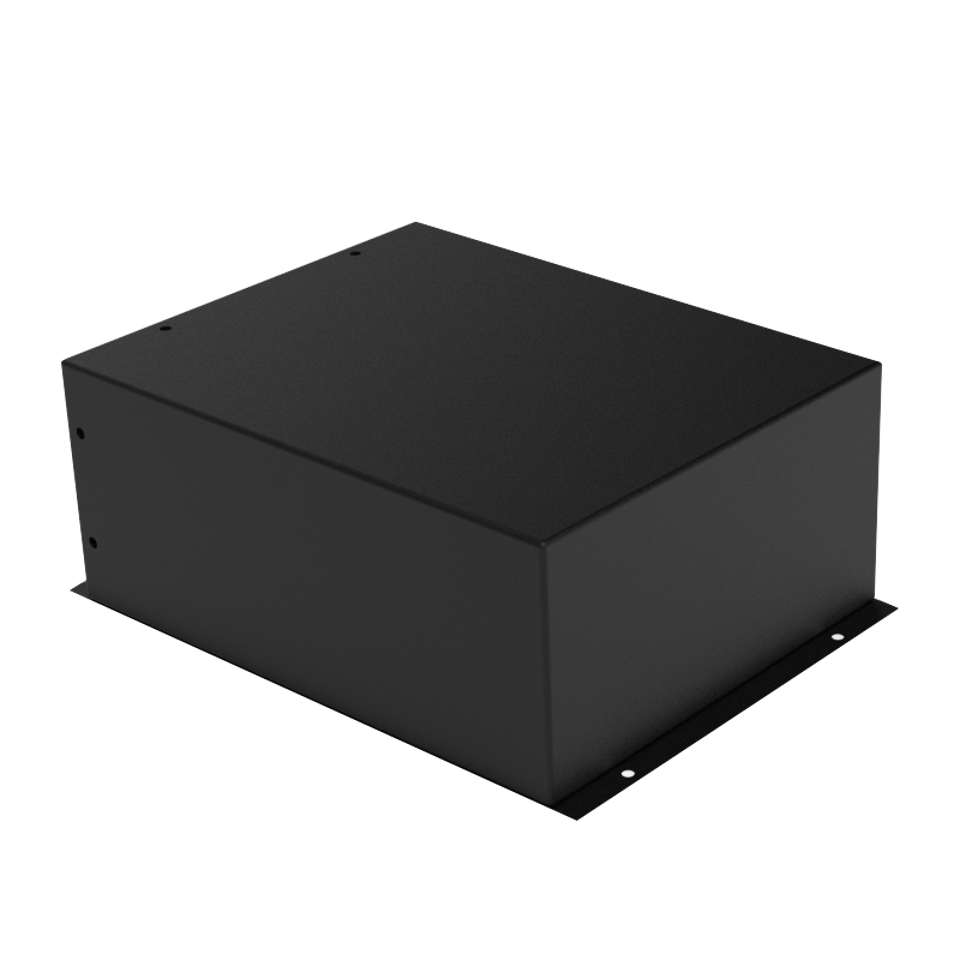

Battery Pack Specification	32700-4S10P-60Ah-12.8V
Product Dimensions	290 * 200 * 90 mm
Nominal Voltage	12.8V
Nominal Capacity	60Ah
Internal Resistance	≤150mΩ
Charging Voltage	14.6V
Charging Current	≤20A
Discharge Current	≤20A
Discharge Cut-off Voltage	10.0V
Battery Weight	4000g (4.0Kg)
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 60 ℃
Storage Temperature	-20 ~ 35 ℃
Battery Casing	Aluminum Alloy Shell
Application Field	Battery equipment for intelligent management systems, Industrial equipment

Protection Type	Description
Lithium Battery Protection	Short circuit protection, Overcharge protection, Over-discharge protection, Overtemperature protection, Overcurrent protection, ESD (Electrostatic Discharge) protection, etc.
