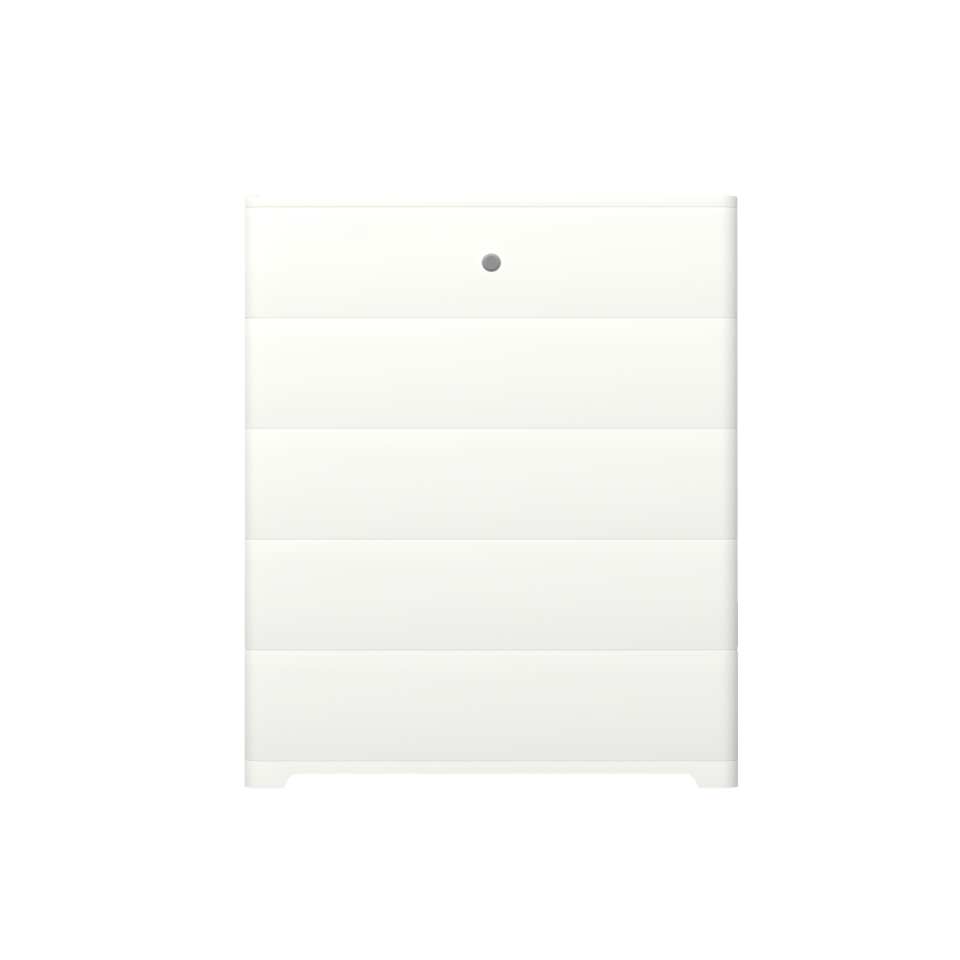

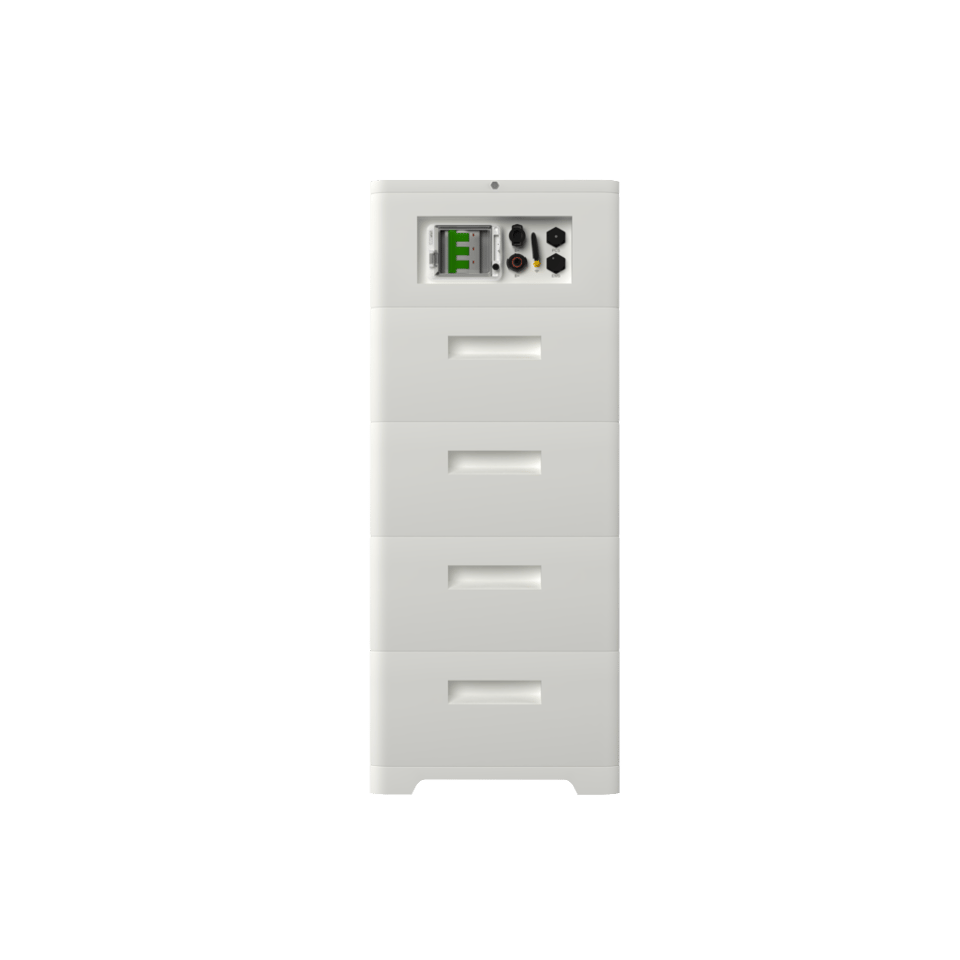

Stackable LiFePO4 Battery for Solar Energy Storage

Specifications

English Technical Specification Sheet

Item	Specification
Model	LFP 9kWhHV
Usable Energy*	8.64 kWh
Number of Modules	3
Rated Voltage	172.8V
Operating Voltage Range	135 - 197.1V
Nominal Voltage	57.6V
Nominal Capacity	50Ah per layer (module)
Max Charging Voltage	197.1V
Weight	102 kg
Product Dimensions	670 * 330 * 330 mm
Max Recommended Depth of Discharge (DoD)	90%
Operating Conditions	Indoor or Outdoor

Feature	Description
Safe & Reliable	Adopts Lithium Iron Phosphate (LiFePO4) cells, ensuring high safety and reliability.
Complete Product Range	Both high-voltage and low-voltage models are available to meet diverse needs.
Scalable & Smart Management	Battery capacity is expandable and equipped with a Battery Management System (BMS).
