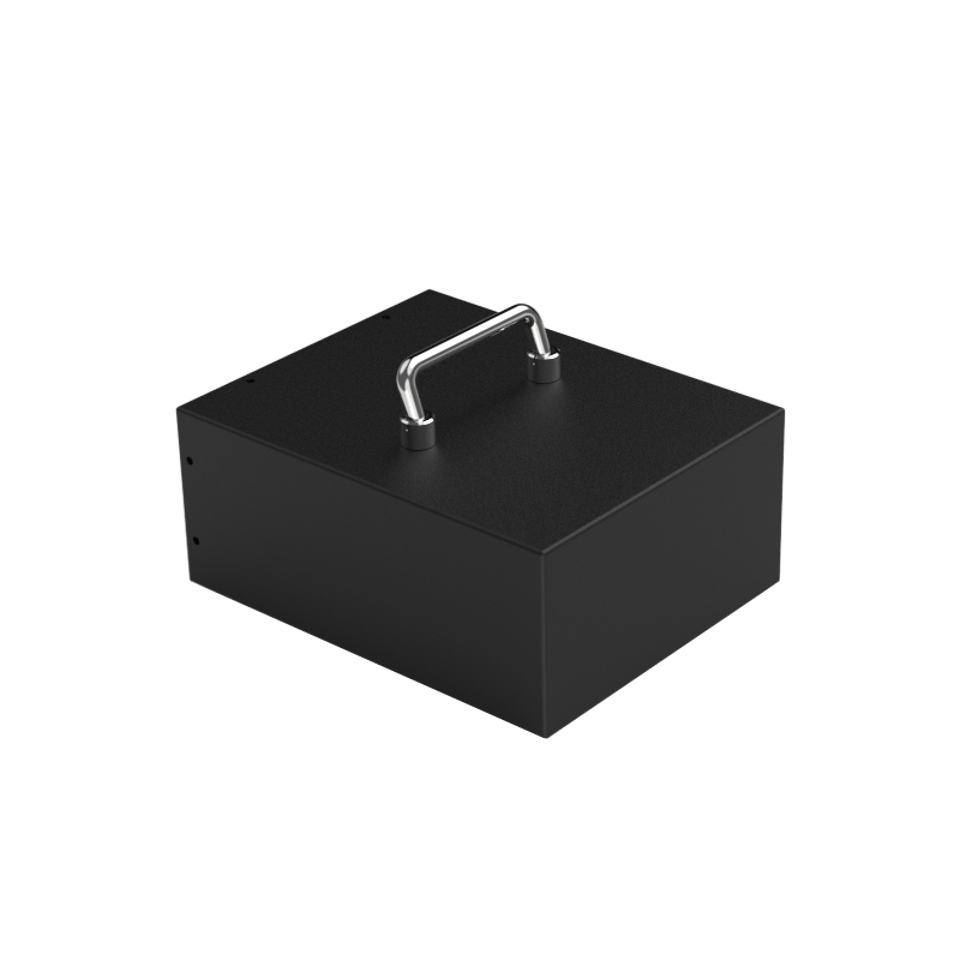

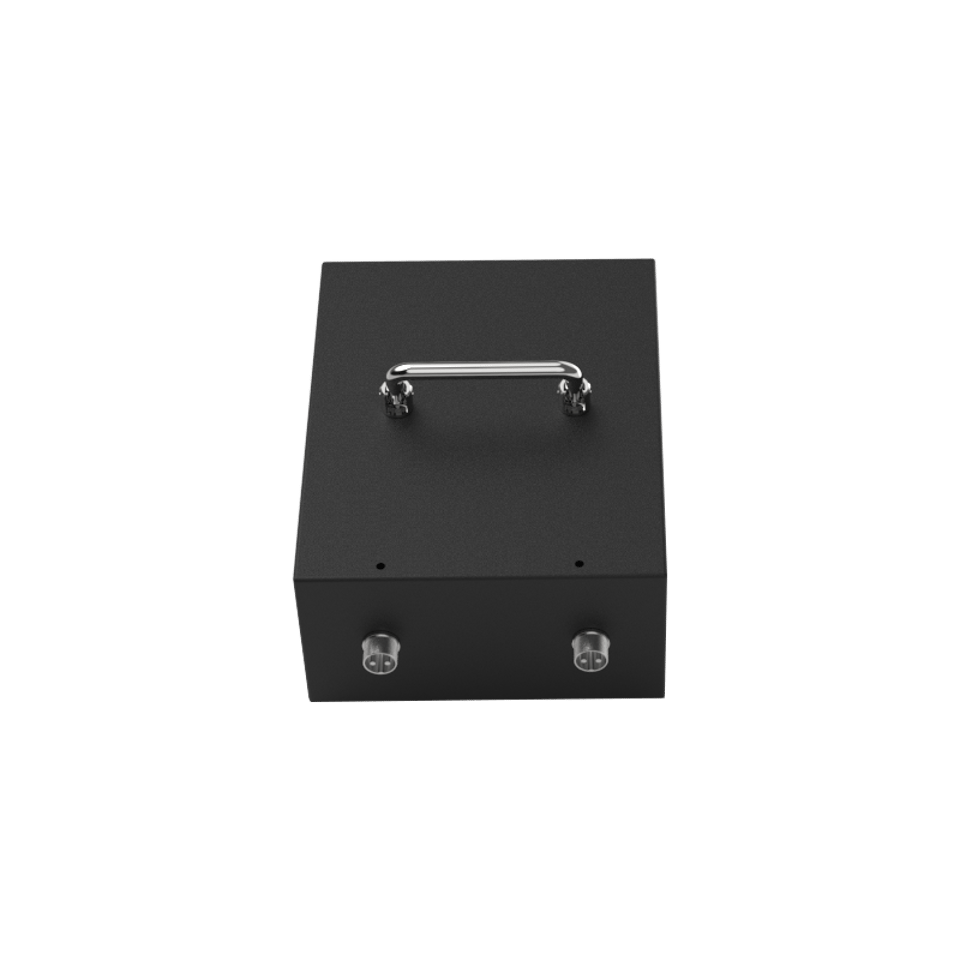

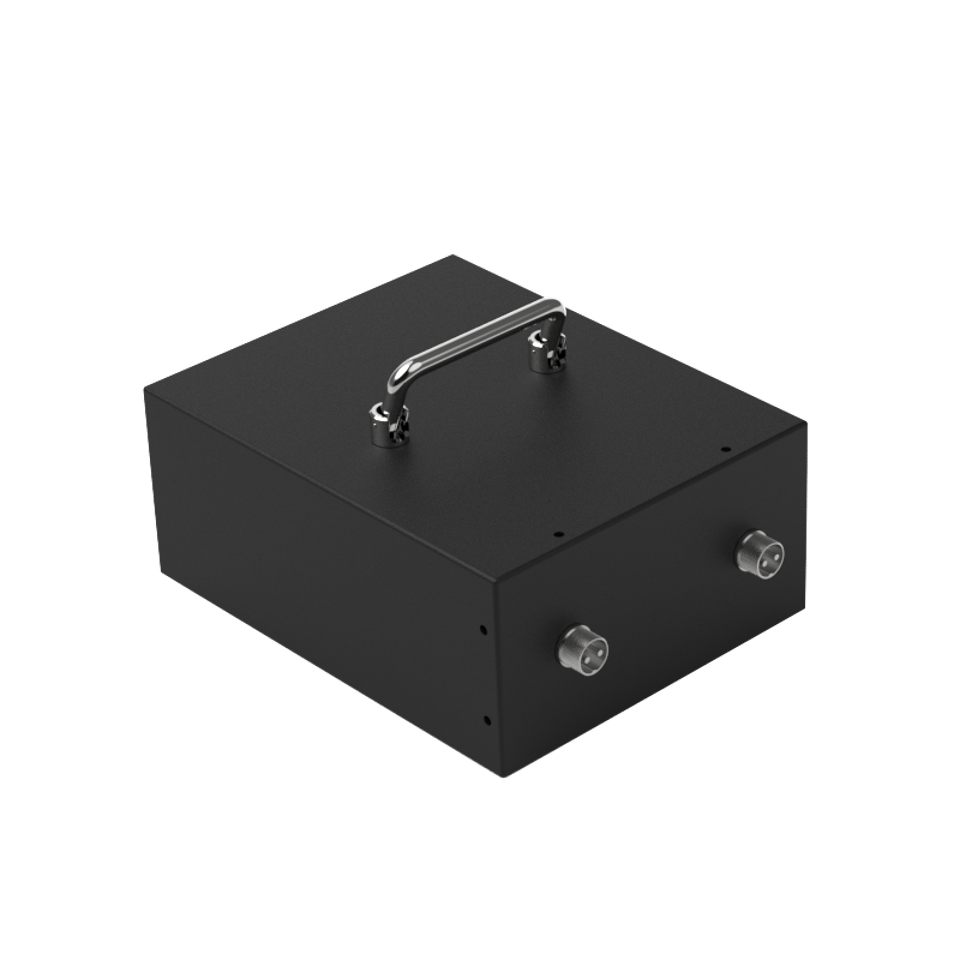

Ternary Lithium Battery for Instrumentation

Specifications

English Technical Specification Sheet

Item	Specification
Battery Pack Specification	18650-6S10P / 2500mAh / 21.6V
Nominal Voltage	21.6V
Nominal Capacity	2600mAh
Charging Voltage	25.2V
Charging Current	5A
Discharge Current	10A
Instantaneous Discharge Current	20A
Discharge Cut-off Voltage	15.0V
Internal Resistance	≤200mΩ
Battery Weight	3.8kg
Product Dimensions	200 * 130 * 75 mm
Charging Temperature	0 ~ 45℃
Discharging Temperature	-40 ~ +55℃
Storage Temperature	-20 ~ +45℃
Battery Packaging	PVC
Application Field	Instrumentation, Metering equipment (Implied)

Protection Type	Description
Lithium Battery Protection	Standard protection (Short circuit, Overcharge, Over-discharge, Overcurrent, Overtemperature) + SMBUS Communication Function.

Feature	Description
Data Communication Management	Adopts TI software management chips, ensuring precise data transmission and accurate temperature control to maximize the elimination of safety hazards.
High Safety and Performance	The battery pack ensures high safety, excellent performance, and utilizes high-standard connectors.
Precise Monitoring	Capable of accurately monitoring battery power/level.
