Ternary & Solar Lithium Battery Equipment

Specifications

English Technical Specification Sheet

Item	Specification
Cell Model	18650 / 3.6V / 5000mAh
Battery Pack Specification	18650-7S2P / 25.2V / 5000mAh
Nominal Voltage	25.2V
Nominal Capacity	5000mAh
Charging Voltage	29.4V
Charging Current	≤3A
Discharge Current	3A
Instantaneous Discharge Current	16A
Discharge Cut-off Voltage	19.6V
Internal Resistance	≤200mΩ
Battery Weight	650g
Product Dimensions	100 × 80 × 40 (Max) mm
Charging Temperature	0 ~ 45℃
Discharging Temperature	-20 ~ 50 ℃
Storage Temperature	-20 ~ 40 ℃
Temperature Protection	65℃ ± 5℃

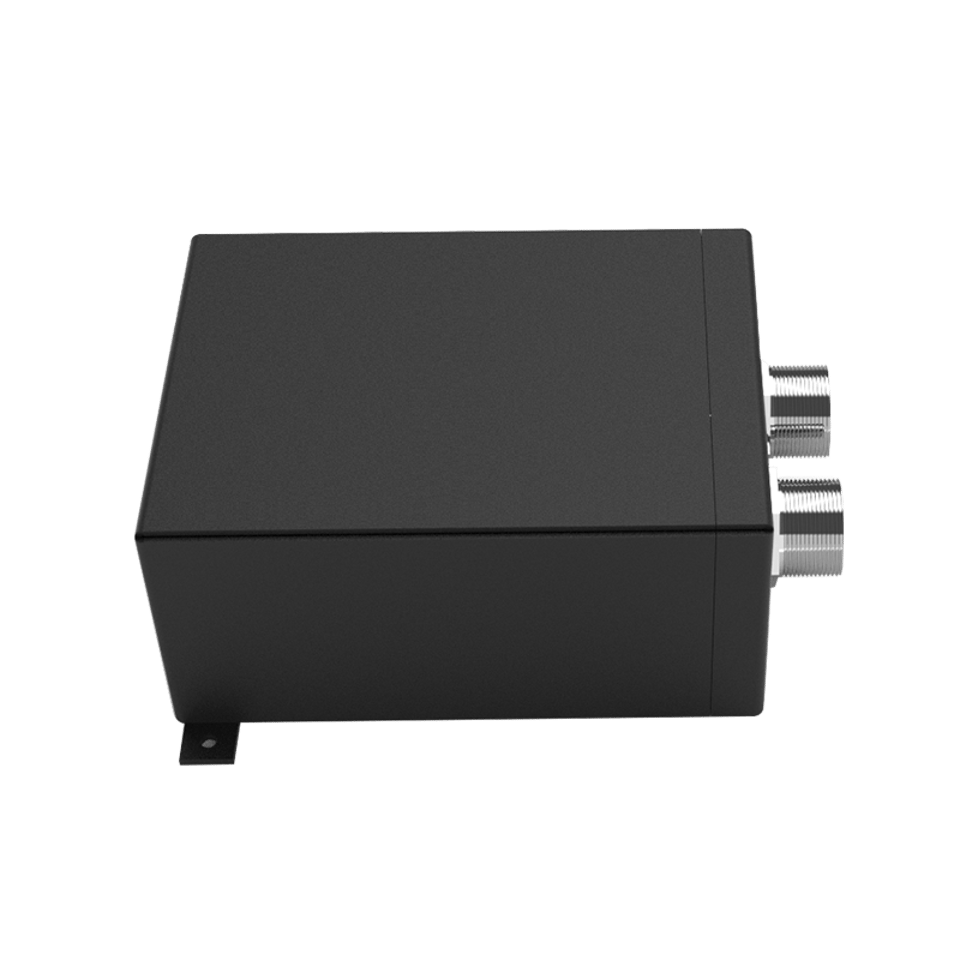

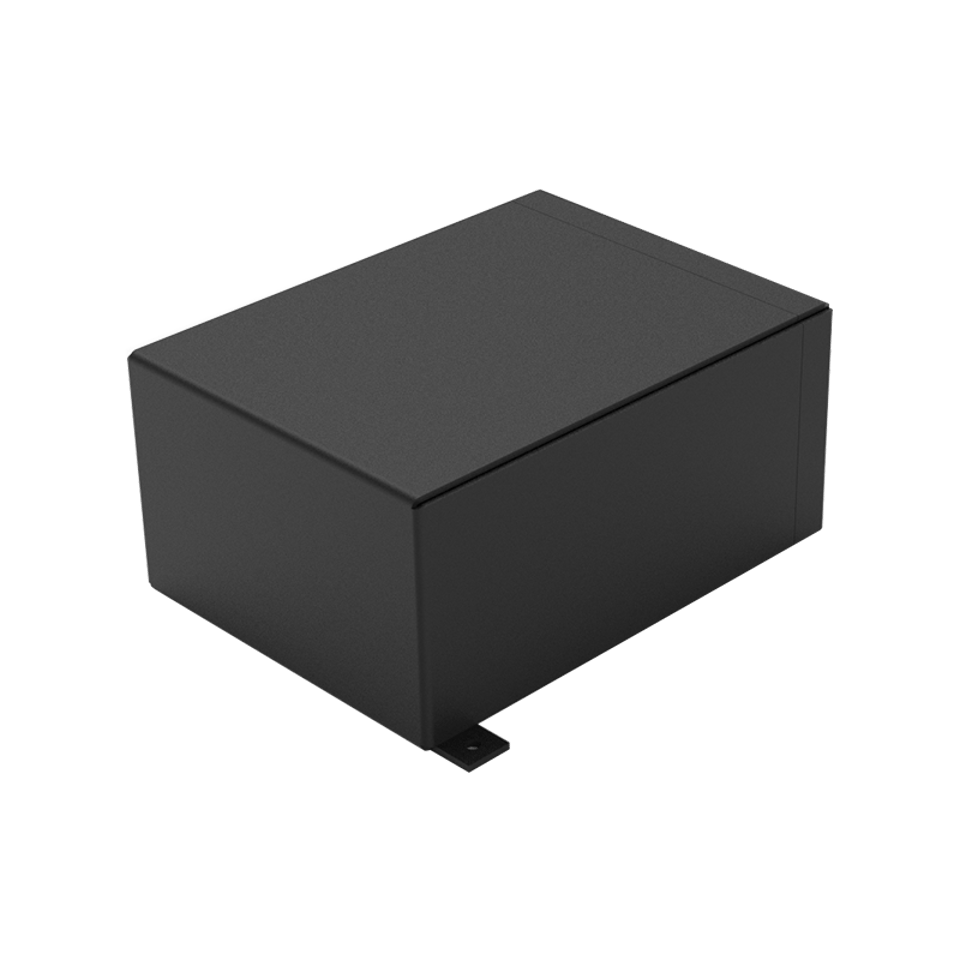

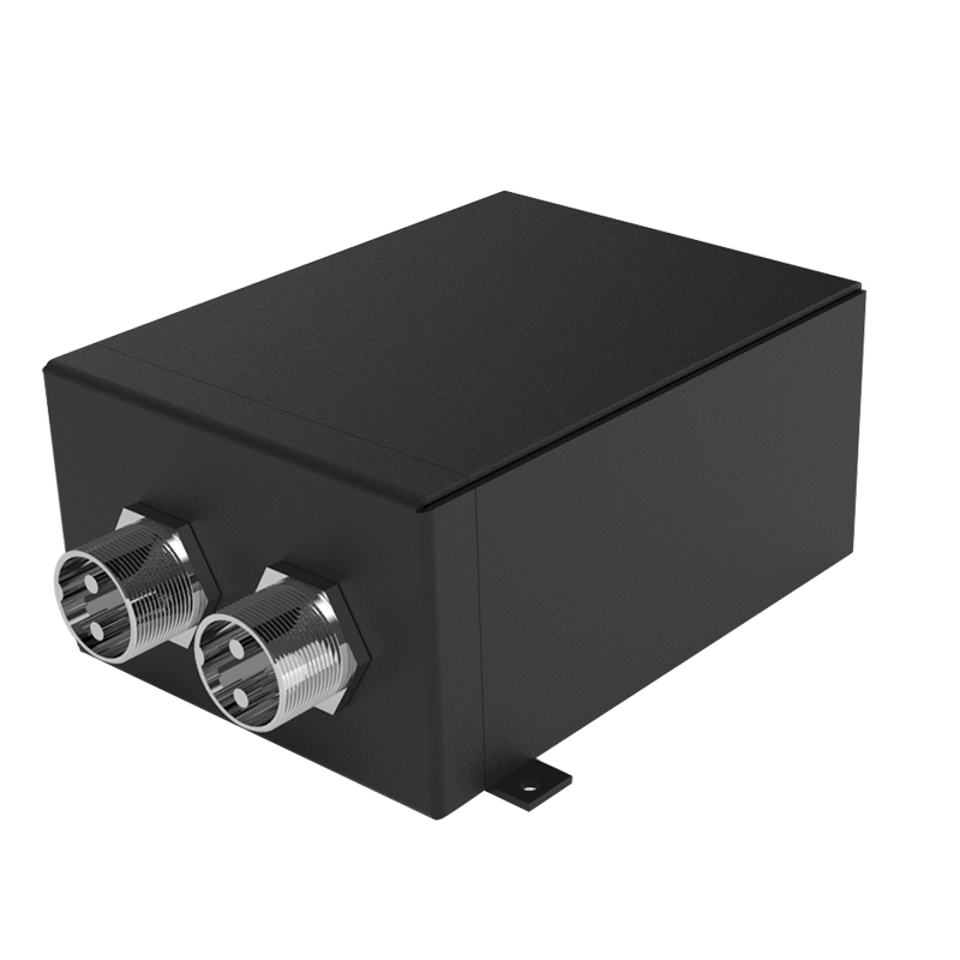

Battery Casing	Cold-rolled Sheet Metal
Application Field	Medical equipment, Instruments & Meters

Protection Type	Description
Lithium Battery Protection	Short circuit protection, Overcharge protection, Over-discharge protection, Overcurrent protection, Temperature protection.

Feature	Description
Shockproof Design	Designed with a cold-rolled sheet metal housing and internal shock-absorbing structure to achieve high safety and high reliability requirements.
Data Communication Management	Adopts a software management chip, ensuring precise data transmission and accurate temperature control to maximize the elimination of safety hazards.
Temperature Probe Safety	The battery pack is safe and comes with a temperature probe; protection is automatically activated if the temperature exceeds the limit.
High Cycle Life	High cycle life, aligning with the values of low carbon, energy saving, and environmental protection.
